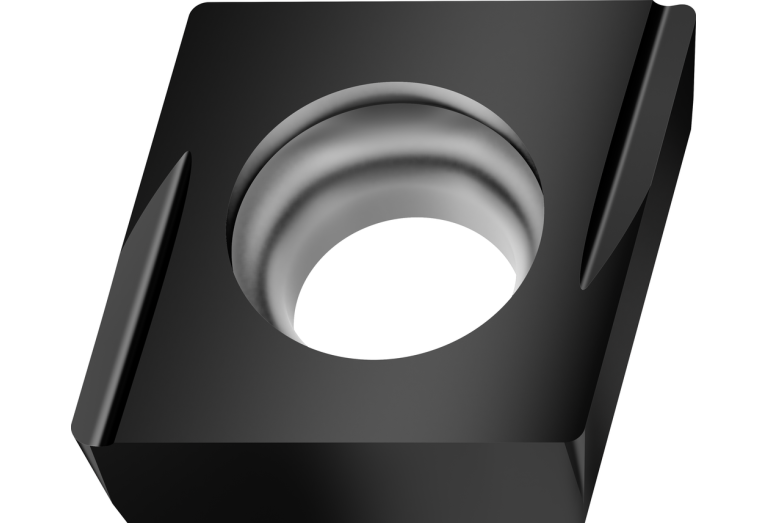

CCGT09T302ML-FX4 WEP01C

Артикул: 8551803

В наличии

В корзину

Описание

Характеристики

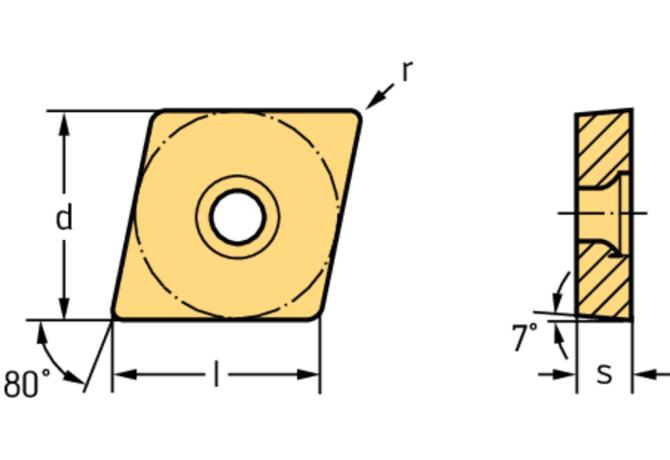

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

FX4

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

TiAlCr-Nitrid

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

6/1/2024

EPSR Insert included angle

80 Degree

FamilyProducts

Positive rhombic 80° CCGT

GRDMFG Grade manufacturers designation

WEP01C

IC Inscribed circle diameter

9.525 mm

ID Technical product number

8551803

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

9.672 mm

Name Identifying order number

CCGT09T302ML-FX4 WEP01C

NameAnsi Identifying order number inch alternative

CCGT3(2.5)0.5ML-FX4 WEP01C

NOI Insert index count

RE Corner radius

0.17 mm

S Insert thickness

3.969 mm

S1 Insert thickness total

3.969 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
