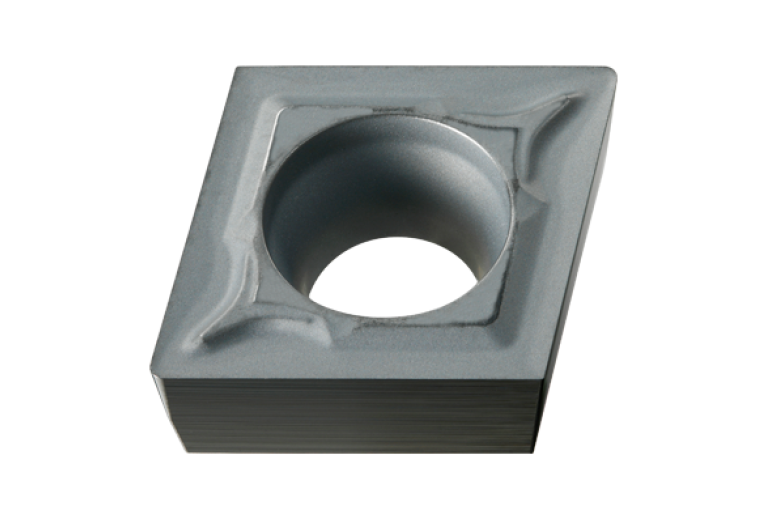

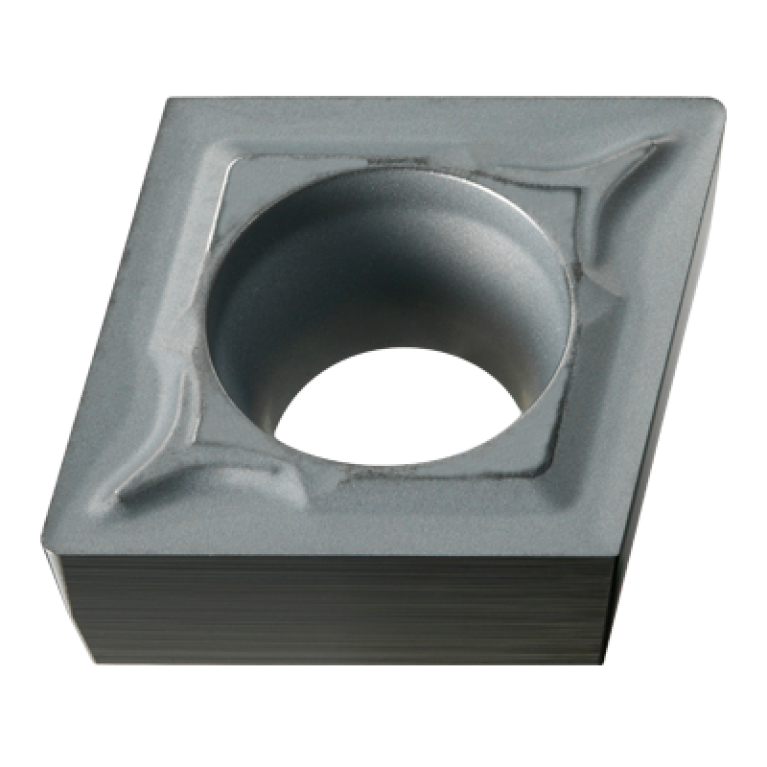

CCGT060204M-LS VP30RT
CCGT060204M-LS VP30RT
Артикул:
23073470
В наличии
Характеристики

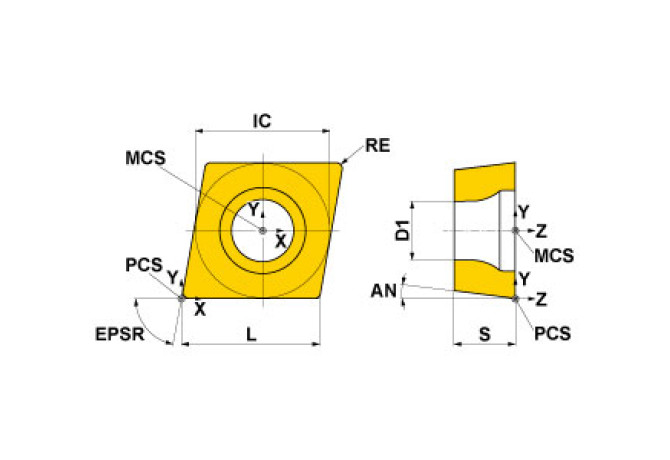

AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
LS
CECC Cutting edge condition code
F - Sharpedged
COATN Coating
(Al,Ti)N
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
2.8 mm
Delivery state valid from
8/16/2023
EPSR Insert included angle
80 Degree
FamilyProducts
Turning insert (Positive)
GRDMFG Grade manufacturers designation
VP30RT
IC Inscribed circle diameter
6.35 mm
ID Technical product number
23073470
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$CC0602043NB$$04
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
6.45 mm
LOC-03 ISO
ISO$CC0602043NB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
CCGT060204M-LS VP30RT
NOI Insert index count
2
RE Corner radius
0.4 mm
S Insert thickness
2.38 mm
STDDESAnsi Standard designation ANSI
CCGT21.51MLS
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
G
Working process
No working processes available
