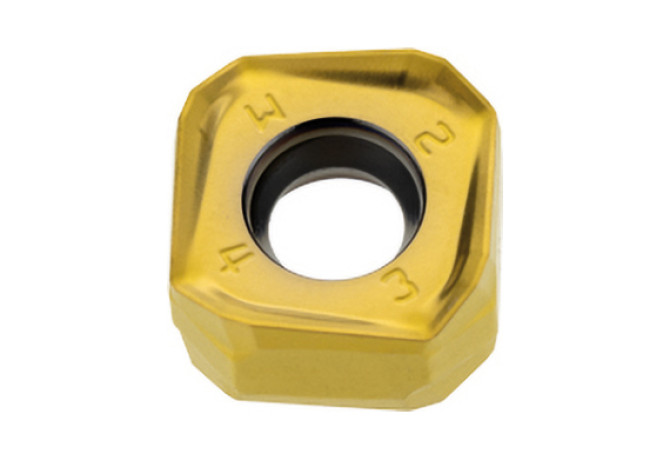

SQGU1105ANR-M IN2505

Артикул: 6236127

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

1 mm

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAIN+TiN

COMPC Company code

IL - Ingersoll

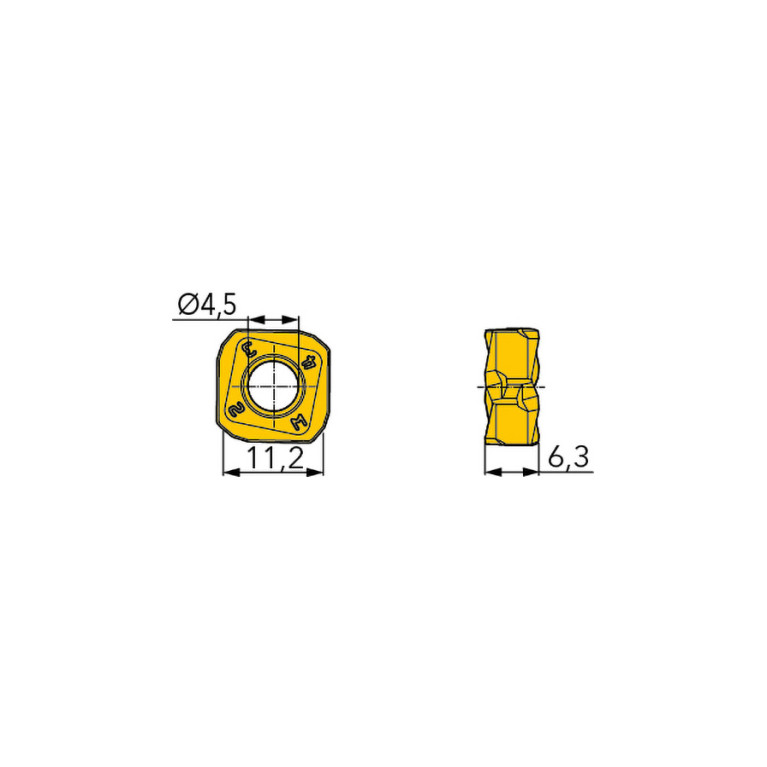

D1 Fixing hole diameter

4.5 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4499

EPSR Insert included angle

90 Degree

FamilyProducts

insert, 8-edged positive insert

FLSC Face land size code

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

11.2 mm

ID Technical product number

6236127

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

11.2 mm

LE Cutting edge effective length

4.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4499

Materials

P,M,S

Name Identifying order number

SQGU1105ANR-M IN2505

S Insert thickness

6.3 mm

S1 Insert thickness total

6.3 mm

TCINS Tolerance class insert

Working process

No working processes available
