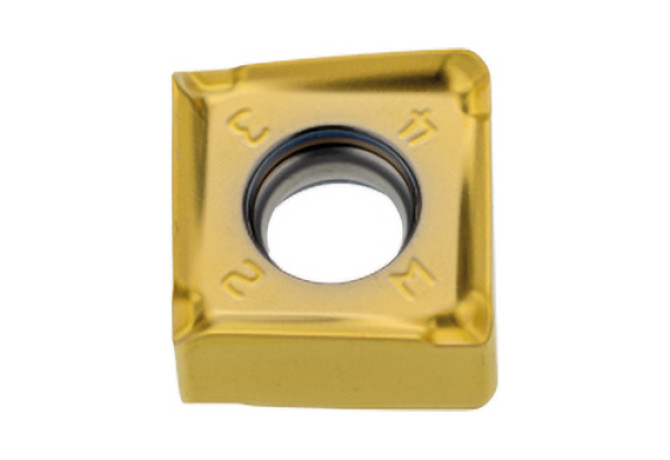

SQGU100408TR-M IN2504

Артикул: 6256801

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

1.1 mm

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

AlTiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

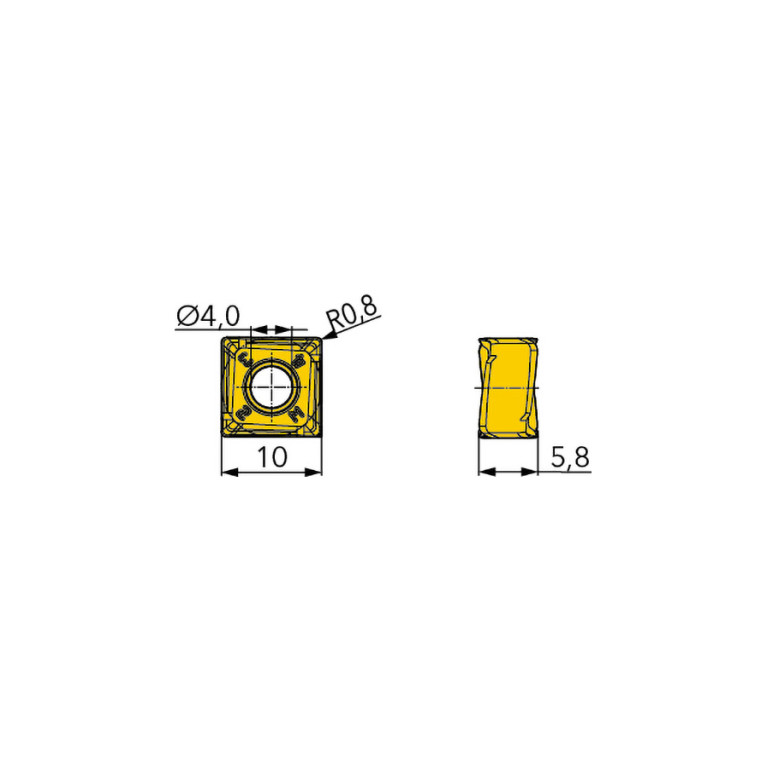

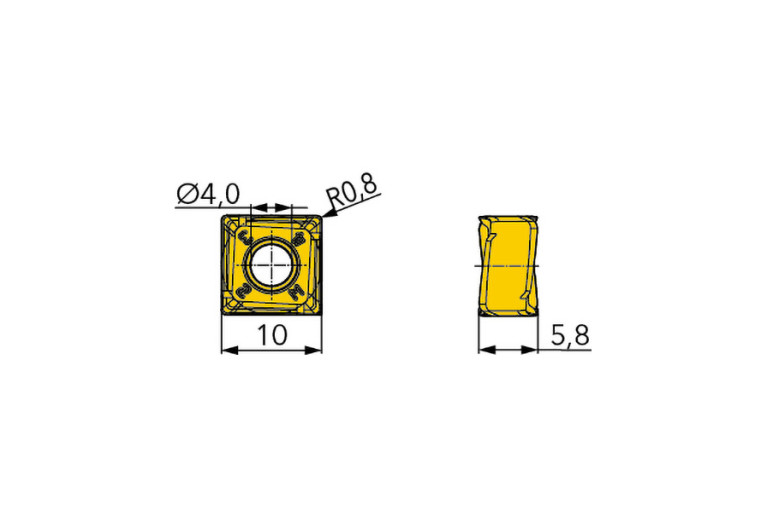

D1 Fixing hole diameter

4 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4498

EPSR Insert included angle

90 Degree

FamilyProducts

insert, eight-edged, positive geometry with R0,8

FLSC Face land size code

GRD2ND Standard designation of the grade 2nd application

K05-K25

GRD3RD Standard designation of the grade 3rd application

H05-H25

GRDMFG Grade manufacturers designation

IN2504

GRDPRIO Standard designation of the grade main application

P05-P25

IC Inscribed circle diameter

10 mm

ID Technical product number

6256801

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

10 mm

LE Cutting edge effective length

7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4498

Materials

P,H

Name Identifying order number

SQGU100408TR-M IN2504

RE Corner radius

0.8 mm

S Insert thickness

5.8 mm

S1 Insert thickness total

5.8 mm

TCINS Tolerance class insert

Working process

No working processes available
