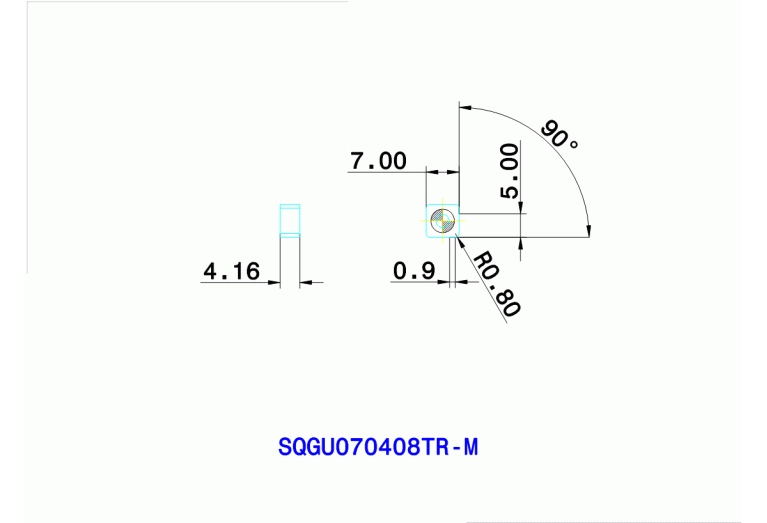

SQGU070408TR-M IN2504

Артикул: 6236280

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

AlTiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4273

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, positive geometry with R0,8

GRDMFG Grade manufacturers designation

IN2504

IC Inscribed circle diameter

7 mm

ID Technical product number

6236280

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4273

Materials

P,H

Name Identifying order number

SQGU070408TR-M IN2504

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.2 mm

S1 Insert thickness total

4.2 mm

TCINS Tolerance class insert

Working process

No working processes available
