Главная Каталог продукции Toolunited 13 201-02 - Square insert SQGU070308R-ML IN2505

SQGU070308R-ML IN2505

Артикул: 6233648

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

PVD beschichtet

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

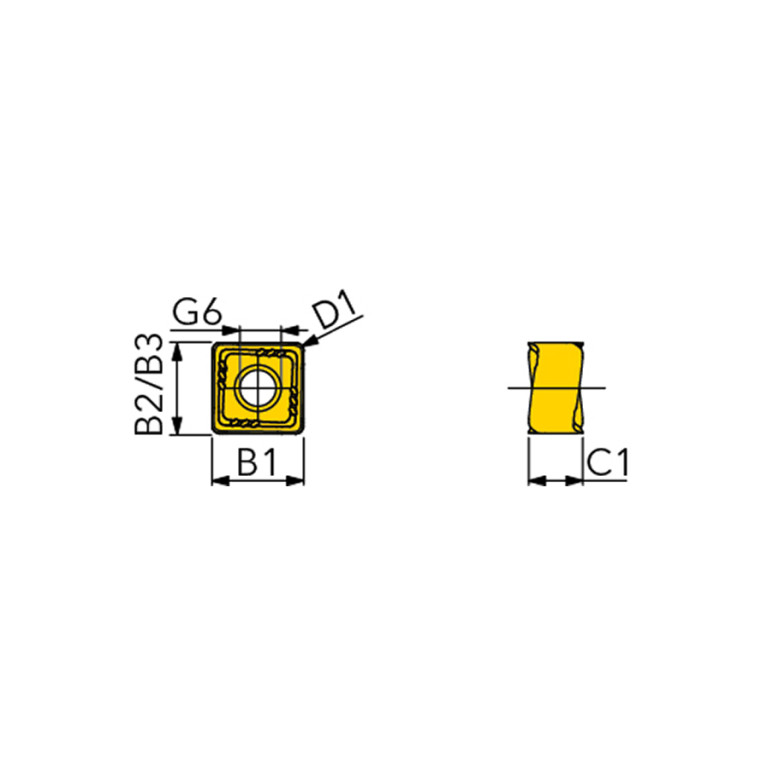

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4479

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, positive geometry with R0,8

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

7 mm

ID Technical product number

6233648

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4479

Materials

P,M,S

Name Identifying order number

SQGU070308R-ML IN2505

RE Corner radius

0.8 mm

S Insert thickness

4.2 mm

TCINS Tolerance class insert

Working process

No working processes available
