SPMX12T3AP-75 MP3501

Артикул: 10198841

В наличии

В корзину

Описание

Характеристики

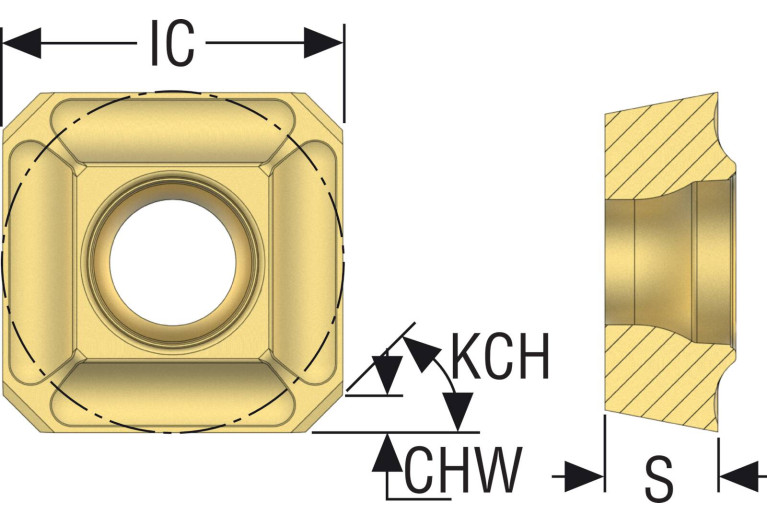

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

1.39 mm

COMPC Company code

SO - SECO Tools

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/28/2024

DIN

SO-SP12T3 3N

EPSR Insert included angle

90 Degree

FamilyProducts

SPMX12T3AP-75 MP3501

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

MP3501

IC Inscribed circle diameter

12.7 mm

ID Technical product number

10198841

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

SO$$SP12T3$$3NBAP$$

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

L Cutting edge length

12.7 mm

LOC-03 ISO

SO$$SP12T3$$3NBAP$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO-SP12T3 3N

Name Identifying order number

SPMX12T3AP-75 MP3501

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SPMX12T3AP

TCINS Tolerance class insert

Working process

No working processes available
