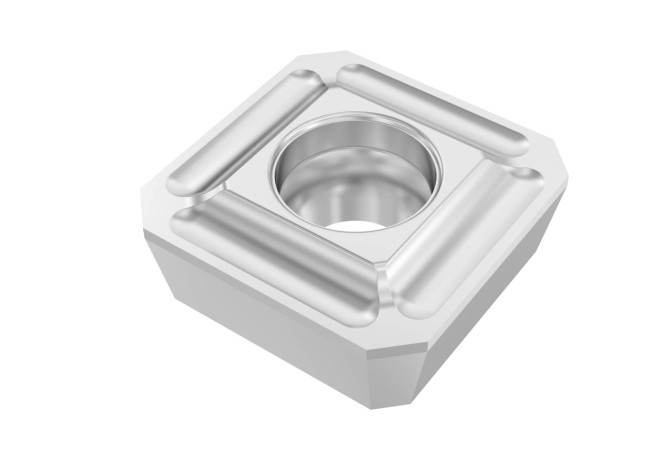

SPMX0903AP-75 MP3501

Артикул: 10198840

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

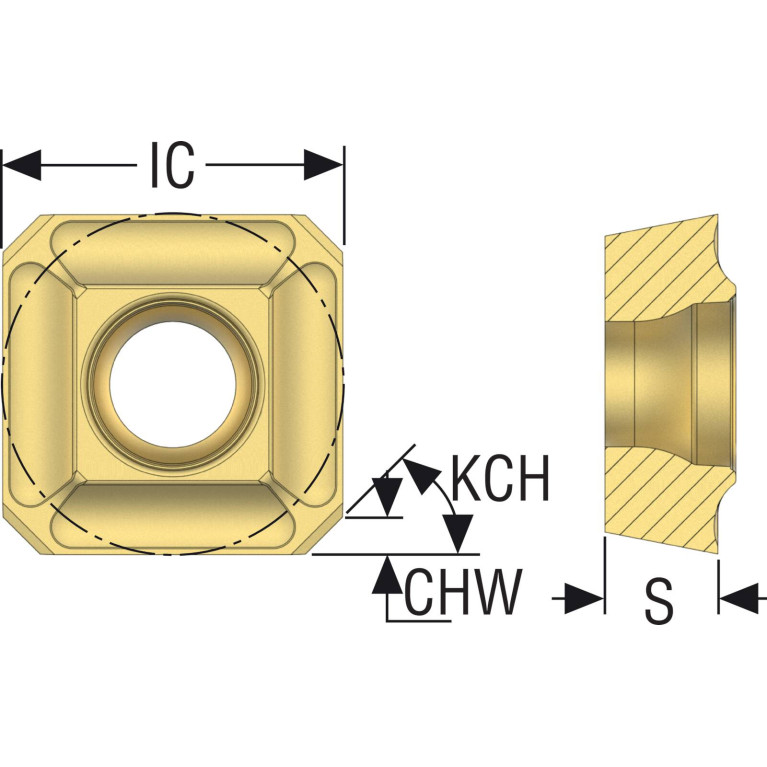

CHW Corner chamfer width

1.05 mm

COMPC Company code

SO - SECO Tools

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.5 mm

Delivery state valid from

2/28/2024

DIN

SO-SP0903 3N

EPSR Insert included angle

90 Degree

FamilyProducts

SPMX0903AP-75 MP3501

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

MP3501

IC Inscribed circle diameter

9.525 mm

ID Technical product number

10198840

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

SO$$SP0903$$3NBAP$$

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

L Cutting edge length

9.525 mm

LOC-03 ISO

SO$$SP0903$$3NBAP$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO-SP0903 3N

Name Identifying order number

SPMX0903AP-75 MP3501

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPMX0903AP

TCINS Tolerance class insert

Working process

No working processes available
