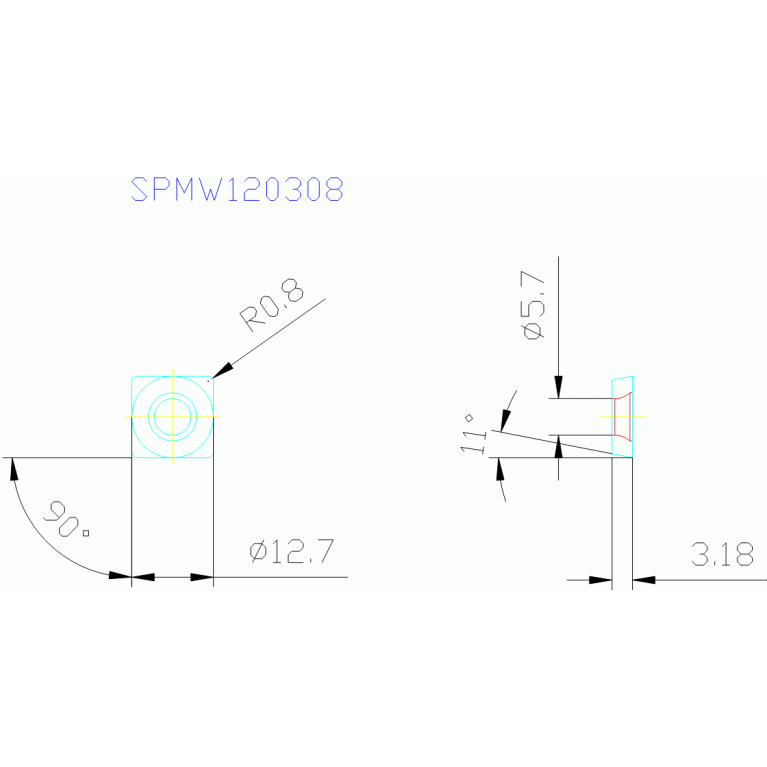

SPMW120308 MX3030

Артикул: 23149854

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

5.7 mm

Delivery state valid from

10/16/2023

EPSR Insert included angle

90 Degree

FamilyProducts

TURNING INSERTS (POSITIVE)Insert for Rotating Tools (Positive)

GRDMFG Grade manufacturers designation

MX3030

IC Inscribed circle diameter

12.7 mm

ID Technical product number

23149854

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SP1203083NA$$08

ISYC Subclass

201-02 - Square insert

LOC-03 ISO

ISO$SP1203083NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

SPMW120308 MX3030

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

STDDESAnsi Standard designation ANSI

SPMW422

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
