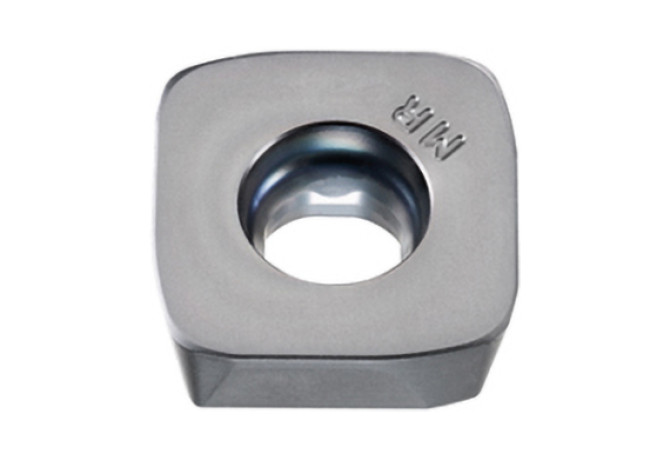

SDXS1906MPR-MR IN4036

Артикул: 3724087

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

7.1 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4109

EPSR Insert included angle

90 Degree

FamilyProducts

insert, neutral geometry convex, chamfered

FLSC Face land size code

GRD2ND Standard designation of the grade 2nd application

S30-S50

GRDMFG Grade manufacturers designation

IN4036

GRDPRIO Standard designation of the grade main application

M30-M50

IC Inscribed circle diameter

18.84 mm

ID Technical product number

3724087

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

18.84 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4109

Name Identifying order number

SDXS1906MPR-MR IN4036

RE Corner radius

2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

Working process

No working processes available
