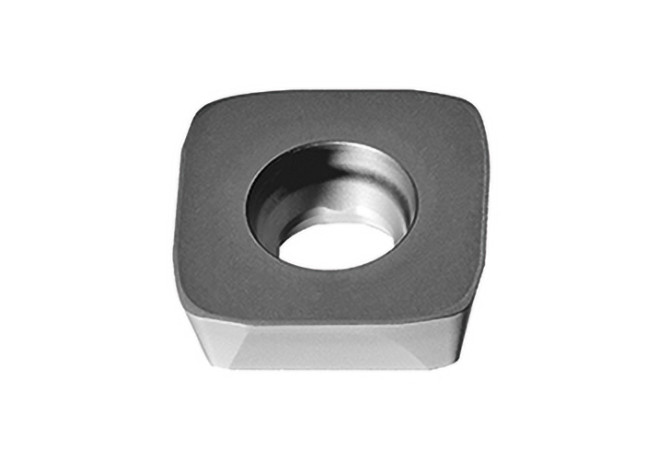

SDXS1605MPR-MR IN6537

Артикул: 6257497

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

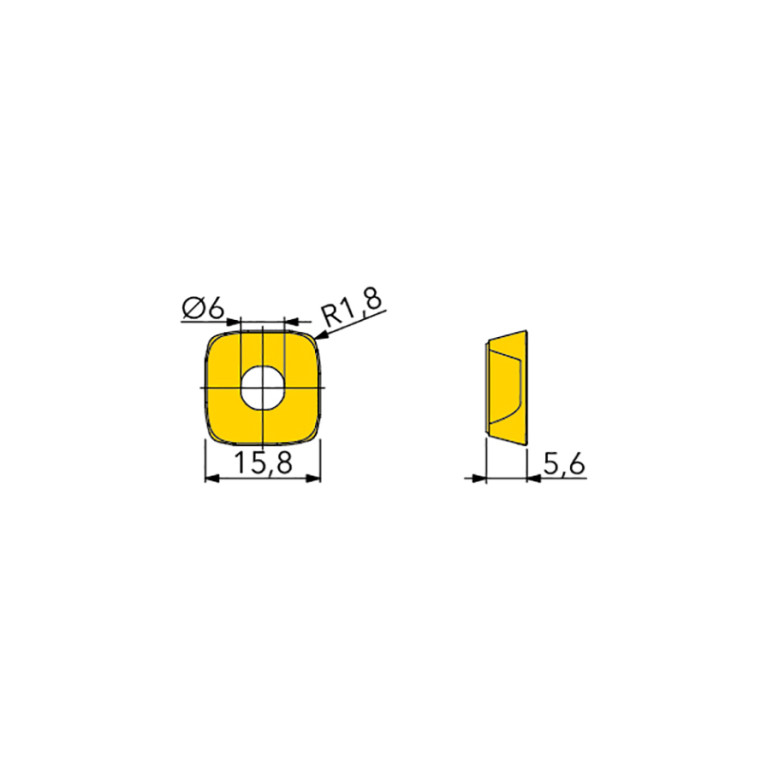

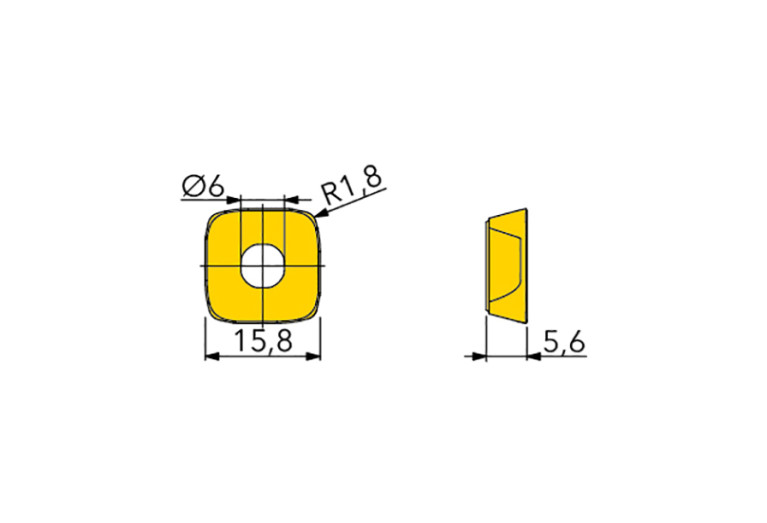

D1 Fixing hole diameter

6 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4256

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRDMFG Grade manufacturers designation

IN6537

IC Inscribed circle diameter

15.84 mm

ID Technical product number

6257497

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.84 mm

LE Cutting edge effective length

2.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4256

Materials

P,M,K

Name Identifying order number

SDXS1605MPR-MR IN6537

RE Corner radius

1.77 mm

S Insert thickness

5.6 mm

S1 Insert thickness total

5.6 mm

TCE Tipped cutting edge code

Working process

No working processes available
