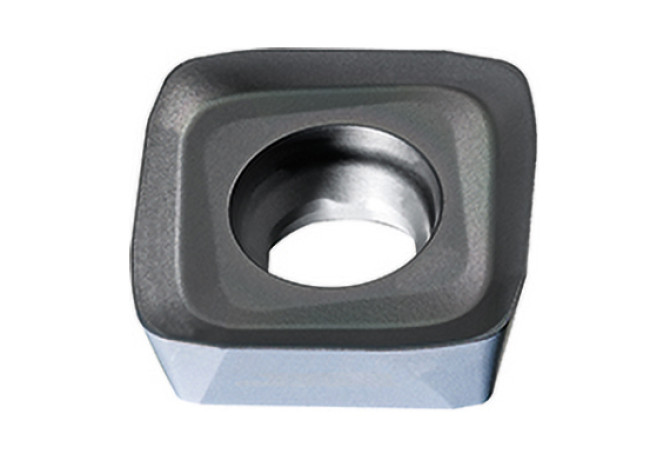

SDXS1605MPR-MM IN4036

Артикул: 3723682

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

6 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4257

EPSR Insert included angle

90 Degree

FamilyProducts

insert, positive geometry convex, chamfered

FLSC Face land size code

GRD2ND Standard designation of the grade 2nd application

S30-S50

GRDMFG Grade manufacturers designation

IN4036

GRDPRIO Standard designation of the grade main application

M30-M50

IC Inscribed circle diameter

15.84 mm

ID Technical product number

3723682

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.84 mm

LE Cutting edge effective length

2.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4257

Name Identifying order number

SDXS1605MPR-MM IN4036

RE Corner radius

1.77 mm

S Insert thickness

5.6 mm

S1 Insert thickness total

5.6 mm

Working process

No working processes available
