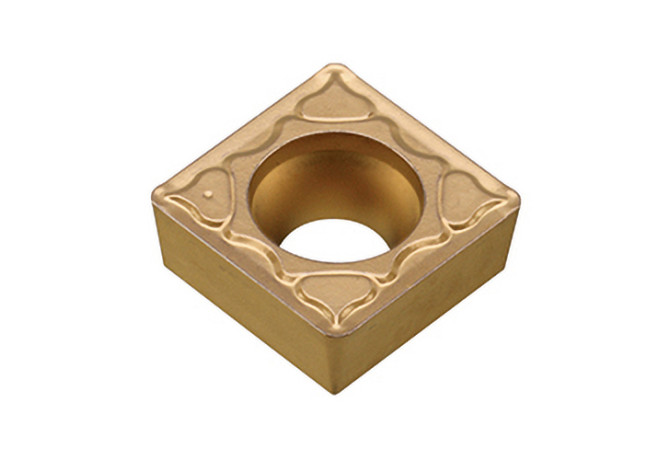

SCMT 120408 PC TT8115B

Артикул: 6236471

В наличии

В корзину

Описание

Характеристики

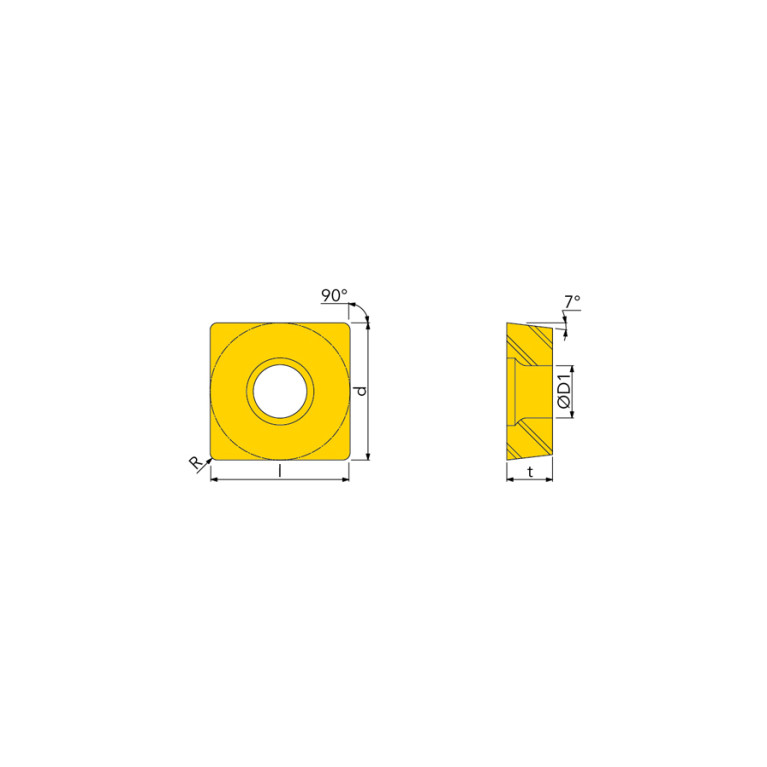

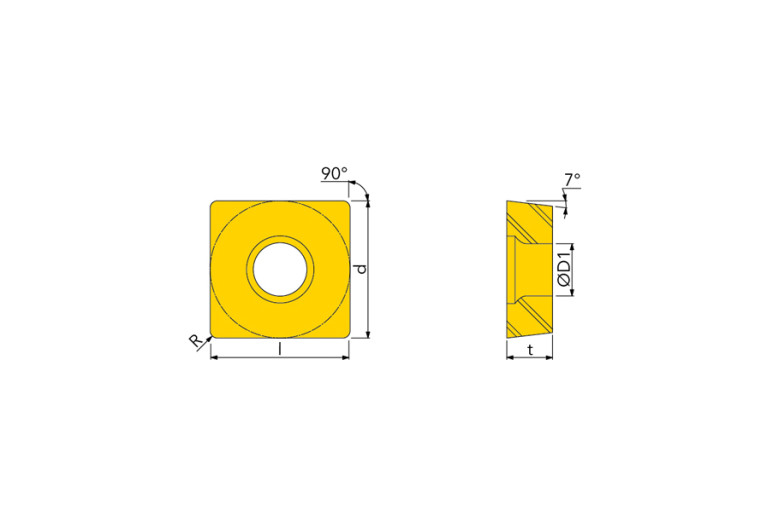

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

7/1/2024

DIN

SC1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Positive 90° Insert - 7° clearance for medium roughing / steel

GRDMFG Grade manufacturers designation

TT8115B

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6236471

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LE Cutting edge effective length

11.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

Materials

MIID Master insert identification

SCMT120408 TT8115B

Name Identifying order number

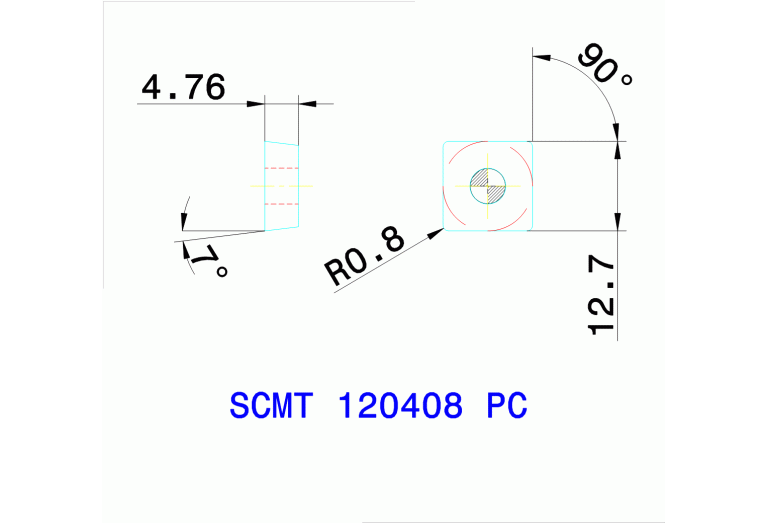

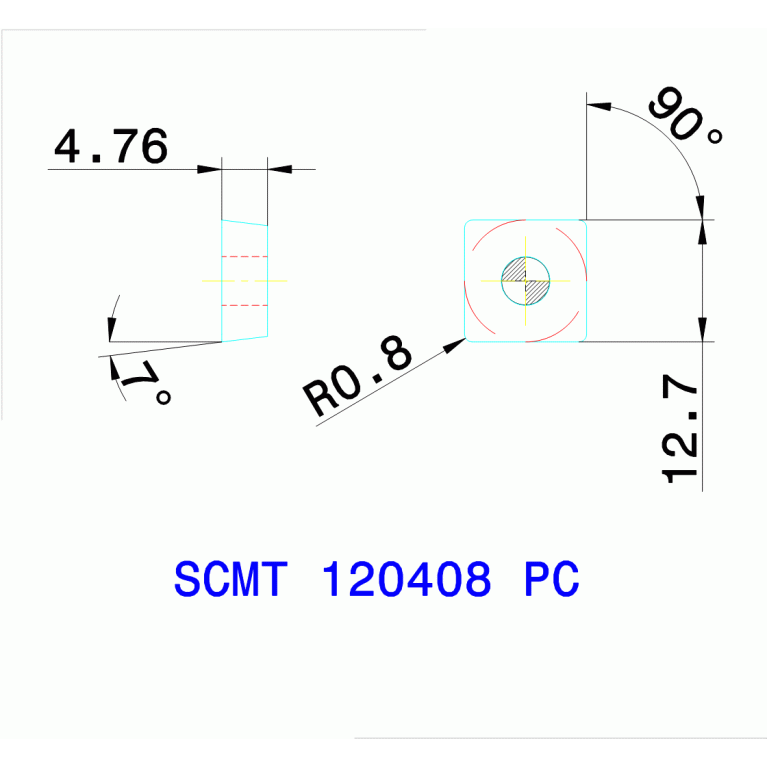

SCMT 120408 PC TT8115B

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SCMT120408

STDDESAnsi Standard designation ANSI

SCMT432

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
