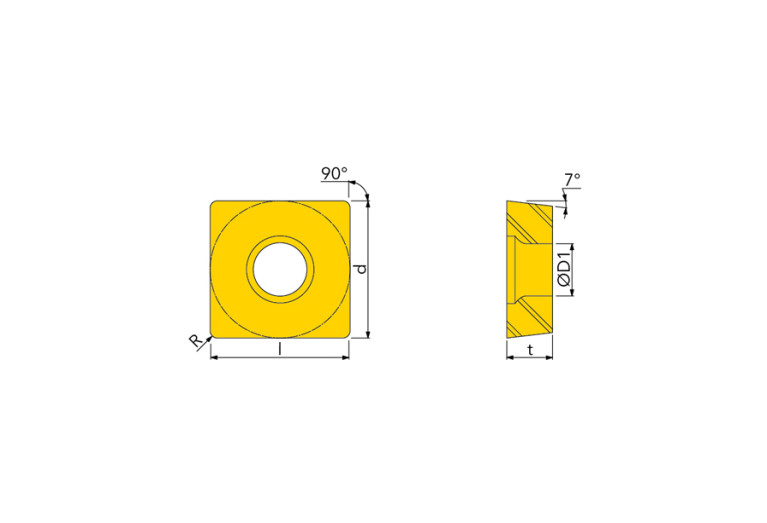

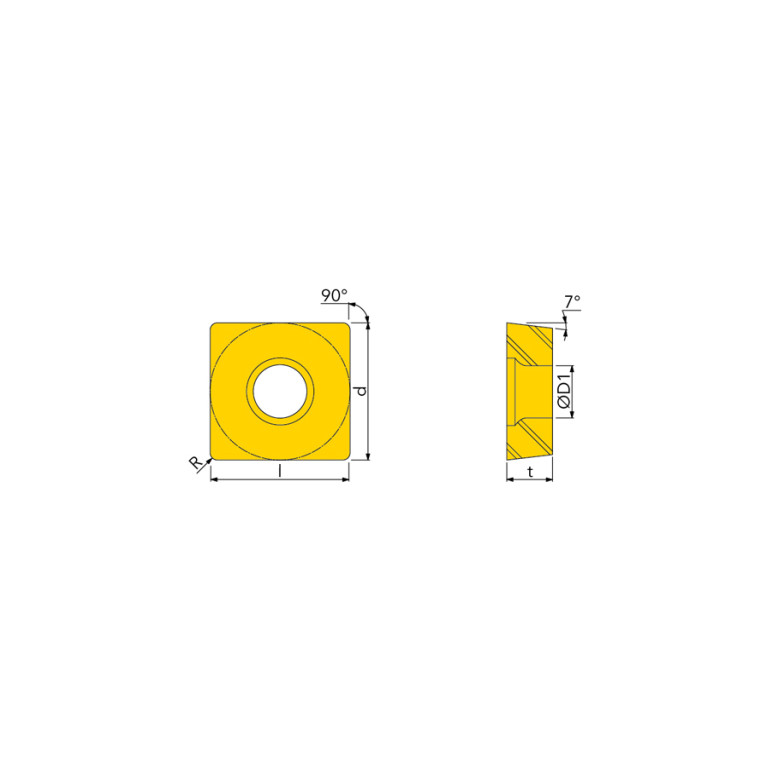

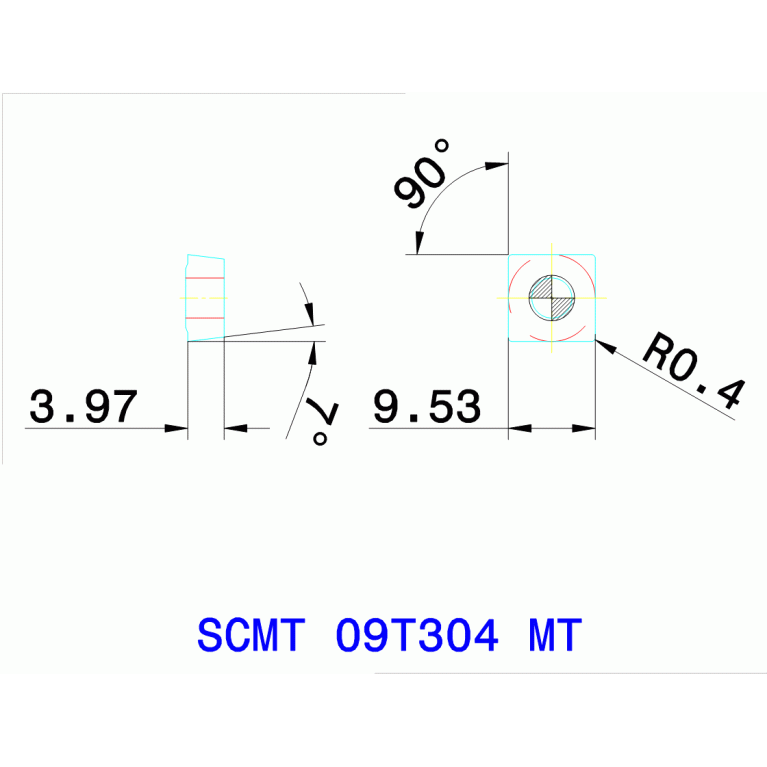

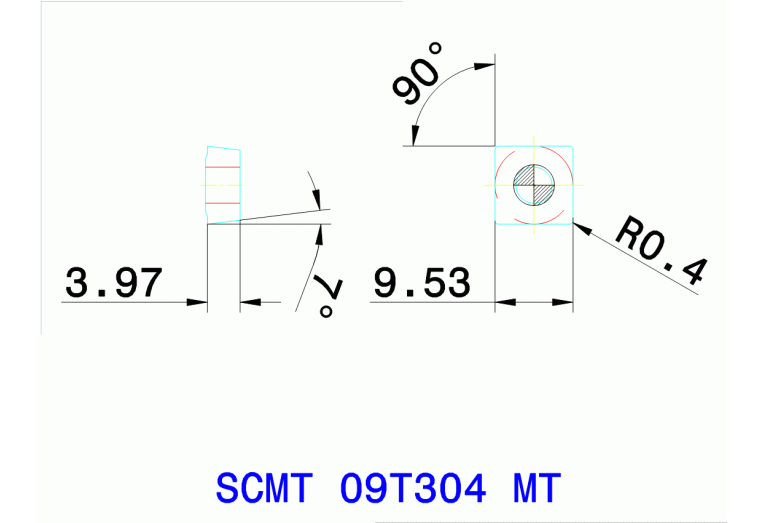

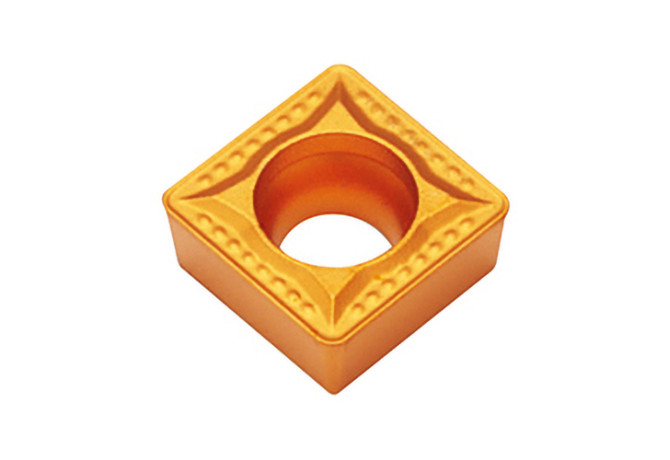

SCMT 09T304 MT TT8115B

Артикул: 6213013

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

7/1/2024

DIN

SC09T3043N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance square inserts for medium machining

GRDMFG Grade manufacturers designation

TT8115B

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6213013

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LE Cutting edge effective length

9.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3043N

Materials

MIID Master insert identification

SCMT09T304 TT8115B

Name Identifying order number

SCMT 09T304 MT TT8115B

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

SCMT09T304

STDDESAnsi Standard designation ANSI

SCMT32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
