Главная Каталог продукции Toolunited 13 201-10 - Round insert RNLU1205MON-S IN6537

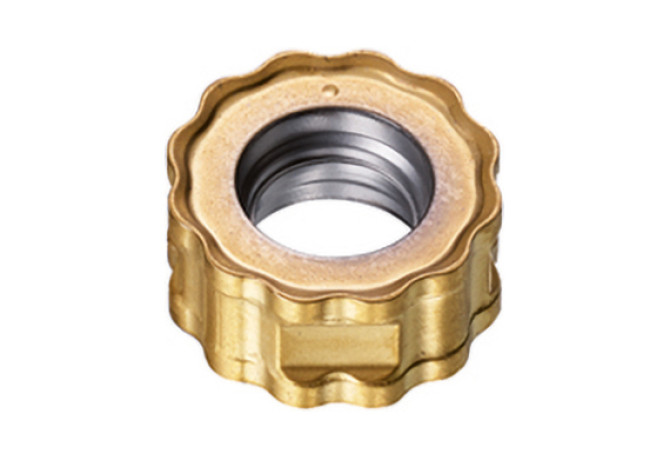

RNLU1205MON-S IN6537

Артикул: 6338578

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating

Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

7/1/2024

DIN

RN1205M03N

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M30-M45

GRD3RD Standard designation of the grade 3rd application

K30-K45

GRDMFG Grade manufacturers designation

IN6537

GRDPRIO Standard designation of the grade main application

P30-P45

IC Inscribed circle diameter

12 mm

ID Technical product number

6338578

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1205M03N

Materials

P,M,K

Name Identifying order number

RNLU1205MON-S IN6537

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
