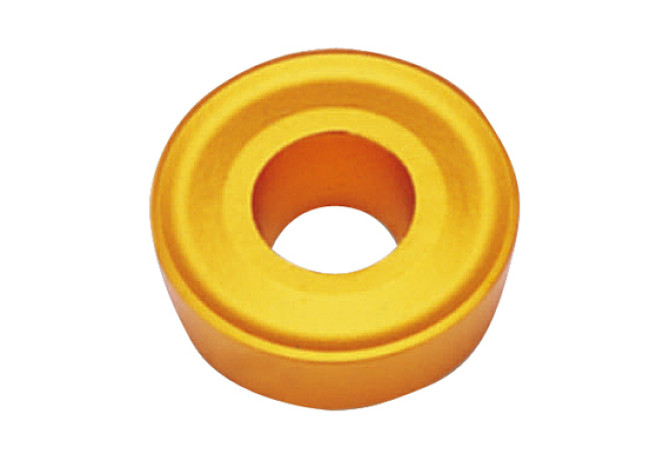

RCMX 320900 TT8115B

Артикул: 6234131

В наличии

В корзину

Описание

Характеристики

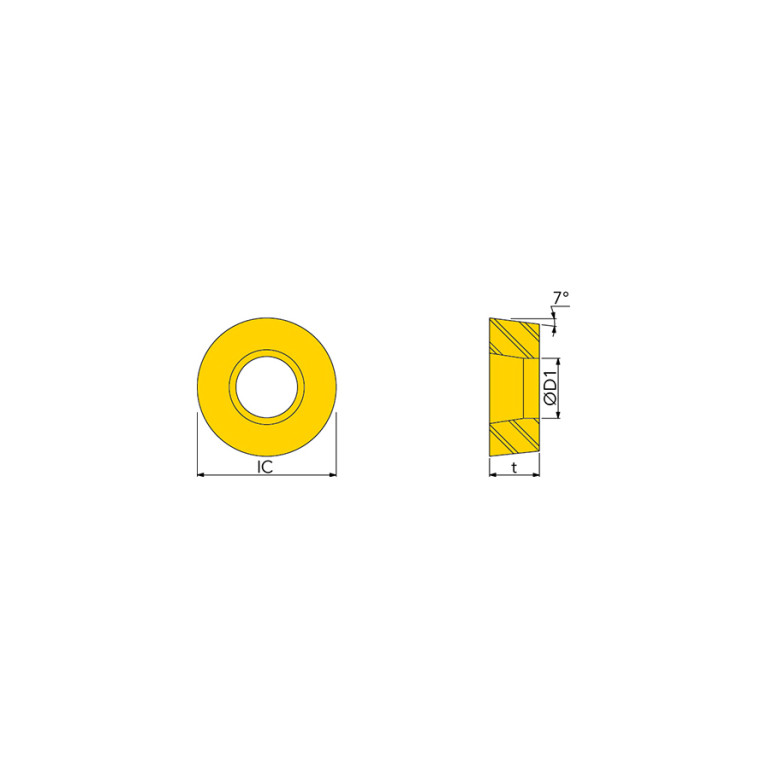

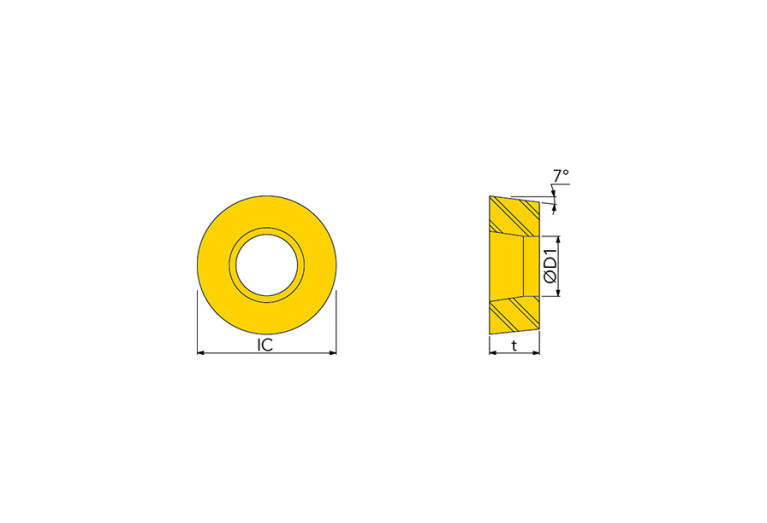

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.5 mm

Delivery state valid from

7/1/2024

DIN

RC3209007N

FamilyProducts

insert, Positive 7° clearance round inserts for roughing

GRDMFG Grade manufacturers designation

TT8115B

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

32 mm

ID Technical product number

6234131

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC3209007N

Materials

MIID Master insert identification

RCMX320900 TT8115B

Name Identifying order number

RCMX 320900 TT8115B

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

RCMX320900

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
