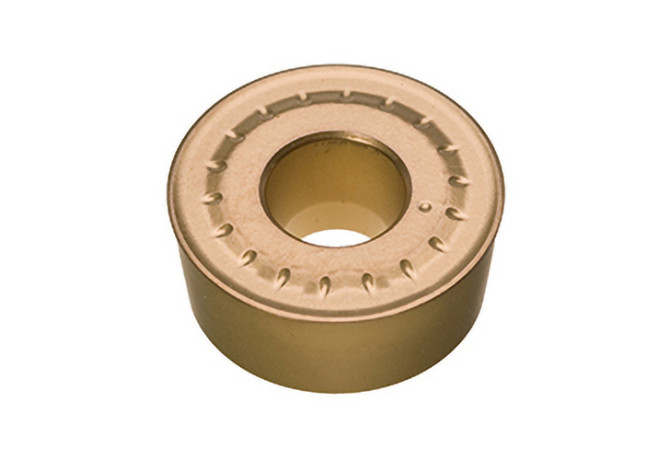

RCMX 120400 RA TT8135B

Артикул: 6241353

В наличии

В корзину

Описание

Характеристики

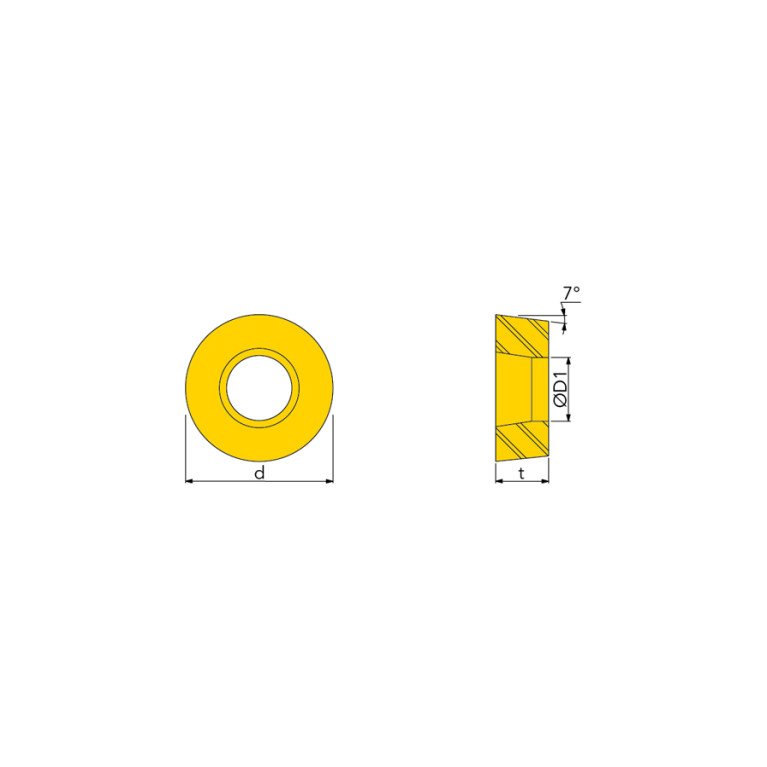

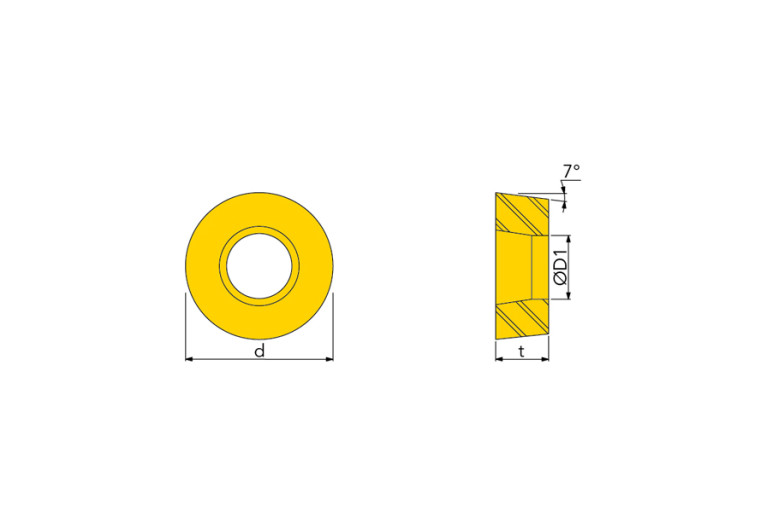

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.19 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-3014

FamilyProducts

insert, Positive round Insert - 7° clearance for medium roughing / steel

GRDMFG Grade manufacturers designation

TT8135B

GRDPRIO Standard designation of the grade main application

P25-P40

IC Inscribed circle diameter

12 mm

ID Technical product number

6241353

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3014

Materials

MIID Master insert identification

RCMX120400 TT8135B

Name Identifying order number

RCMX 120400 RA TT8135B

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RCMX120400

STDDESAnsi Standard designation ANSI

RCMX430

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
