Главная Каталог продукции Toolunited 13 201-10 - Round insert RCMT1204M0N-RX AC8115P

RCMT1204M0N-RX AC8115P

Артикул: RCMT1204M0N-RX AC8115P

В наличии

В корзину

Описание

Характеристики

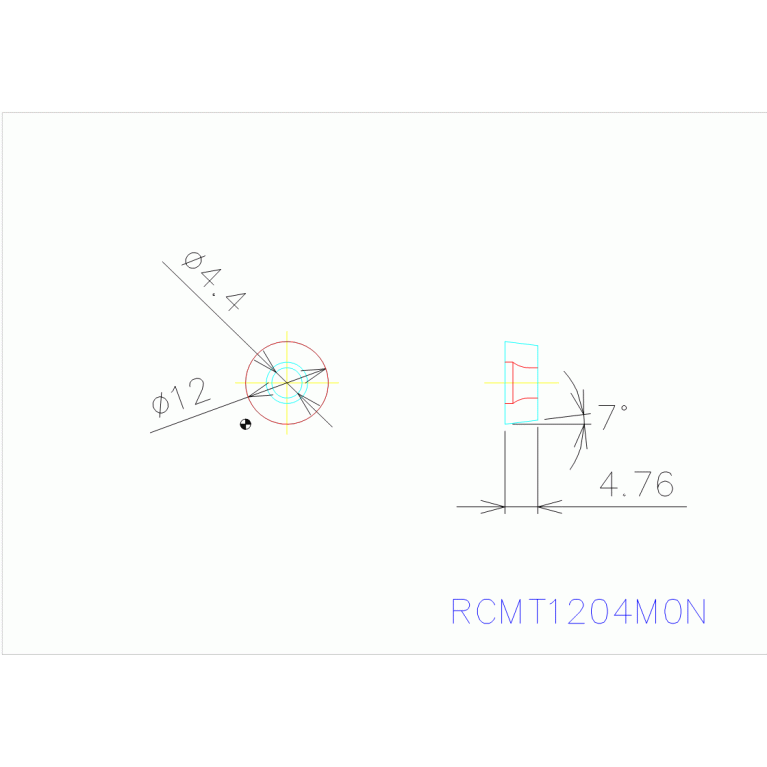

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

Absotech

COMPC Company code

SU - Sumitomo

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2024

DIN

RC1204M03N

FamilyProducts

Indexable Insert

GRDMFG Grade manufacturers designation

AC8115P

IC Inscribed circle diameter

12 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204M03N

MIID Master insert identification

RCMT1204M0N

Name Identifying order number

RCMT1204M0N-RX AC8115P

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDNO Standard

DIN ISO 1832

TCINS Tolerance class insert

Working process

No working processes available
