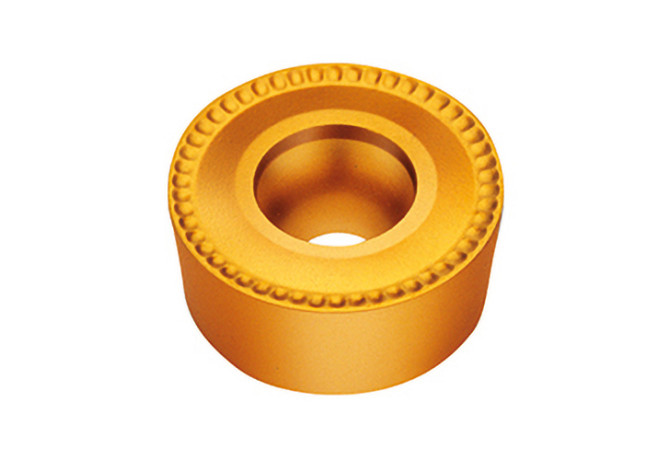

RCMT 160600 MT TT8115B

Артикул: 6236484

В наличии

В корзину

Описание

Характеристики

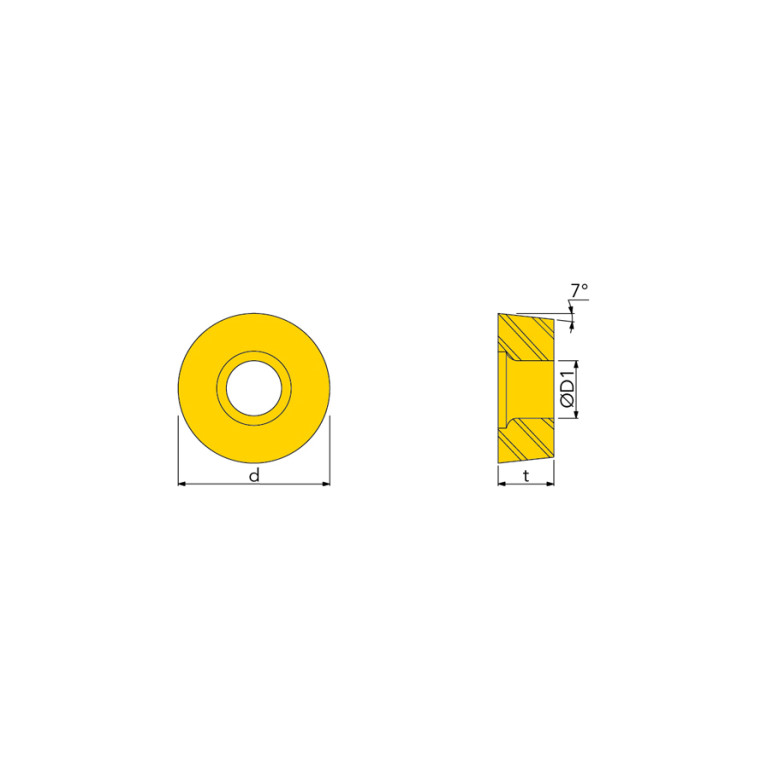

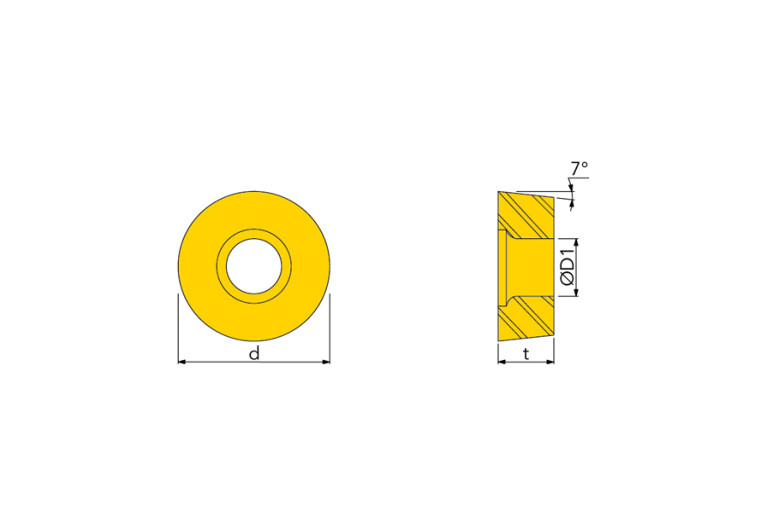

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-1210

FamilyProducts

insert, Chipbreaker, positive 7° clearance round inserts for medium machining

GRDMFG Grade manufacturers designation

TT8115B

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

16 mm

ID Technical product number

6236484

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-1210

Materials

MIID Master insert identification

RCMT160600 TT8115B

Name Identifying order number

RCMT 160600 MT TT8115B

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

RCMT160600

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
