Главная Каталог продукции Toolunited 13 201-10 - Round insert RCMT 120400 MT TT8125B

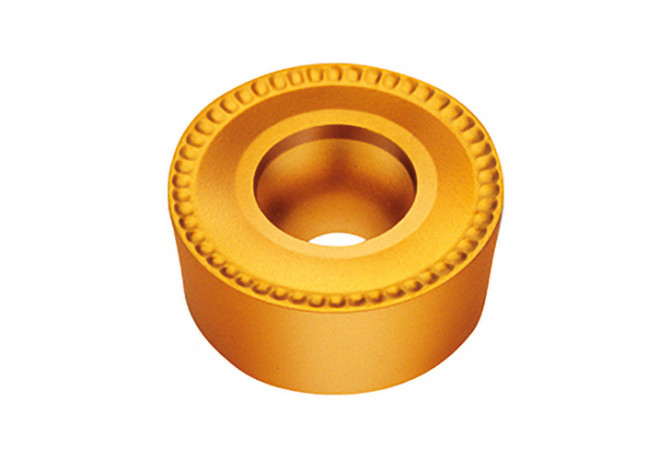

RCMT 120400 MT TT8125B

Артикул: 6212858

В наличии

В корзину

Описание

Характеристики

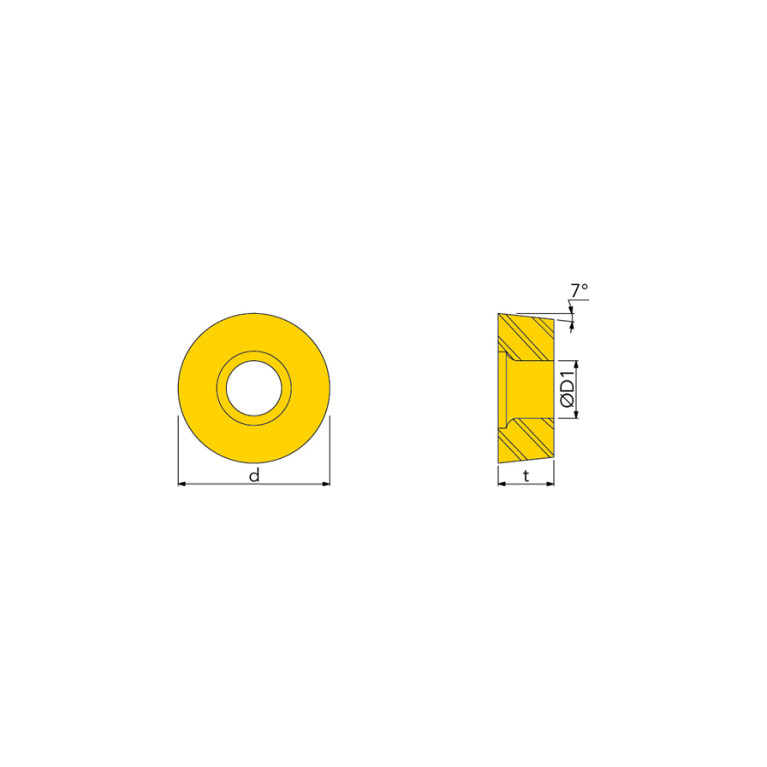

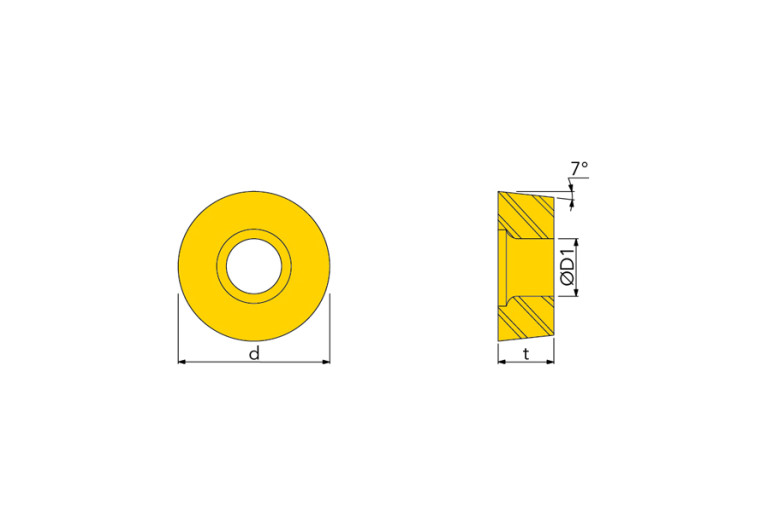

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-1209

FamilyProducts

insert, Chipbreaker, positive 7° clearance round inserts for medium machining

GRDMFG Grade manufacturers designation

TT8125B

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

12 mm

ID Technical product number

6212858

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-1209

Materials

MIID Master insert identification

RCMT120400 TT8125B

Name Identifying order number

RCMT 120400 MT TT8125B

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RCMT120400

STDDESAnsi Standard designation ANSI

RCMT430

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
