Главная Каталог продукции Toolunited 13 201-09 - Octogonal insert ONCU0505ANTN-HR IN6537

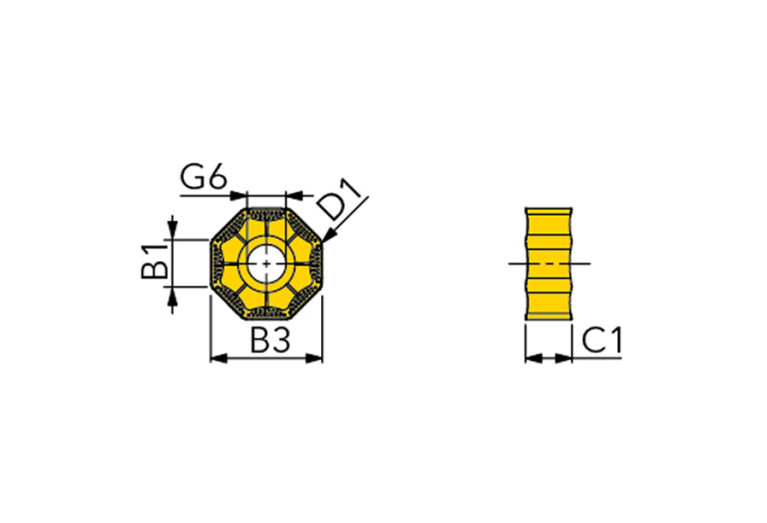

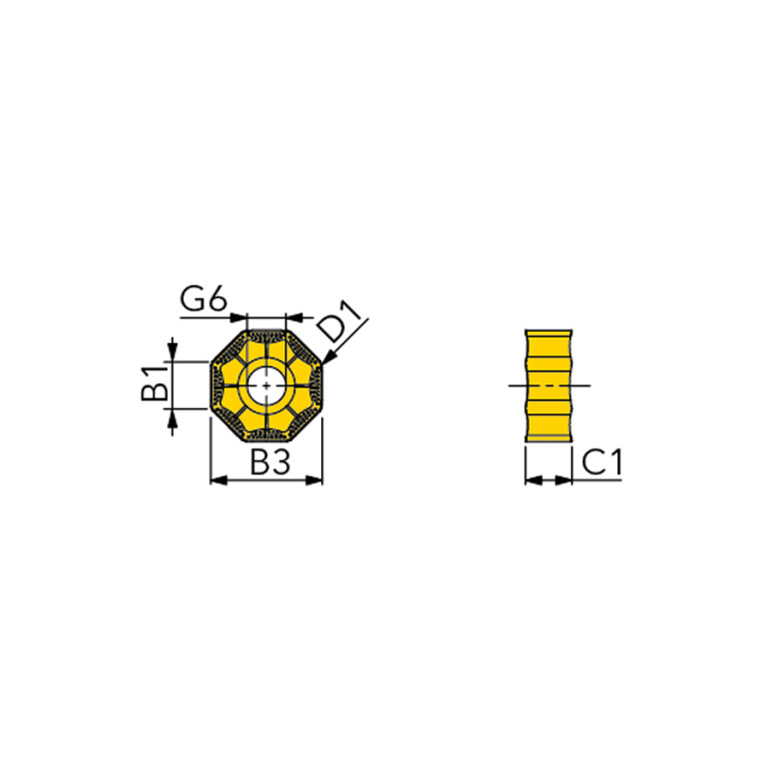

ONCU0505ANTN-HR IN6537

Артикул: 3723055

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating

Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.6 mm

Delivery state valid from

7/1/2024

DIN

ON0505AN5N

EPSR Insert included angle

135 Degree

FamilyProducts

insert, sixteen-edged, positive geometry

GRD2ND Standard designation of the grade 2nd application

M30-M45

GRD3RD Standard designation of the grade 3rd application

K30-K45

GRDMFG Grade manufacturers designation

IN6537

GRDPRIO Standard designation of the grade main application

P30-P45

IC Inscribed circle diameter

13.25 mm

ID Technical product number

3723055

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

4.86 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ON0505AN5N

Materials

P,M,K

Name Identifying order number

ONCU0505ANTN-HR IN6537

NOI Insert index count

S Insert thickness

5.5 mm

S1 Insert thickness total

5.5 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
