Главная Каталог продукции Toolunited 13 201-04 - Rectangular insert CNHJ060220 IN2006

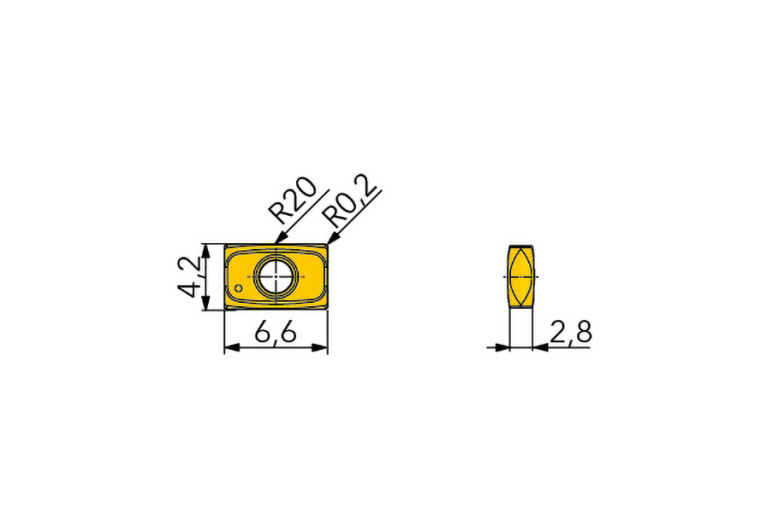

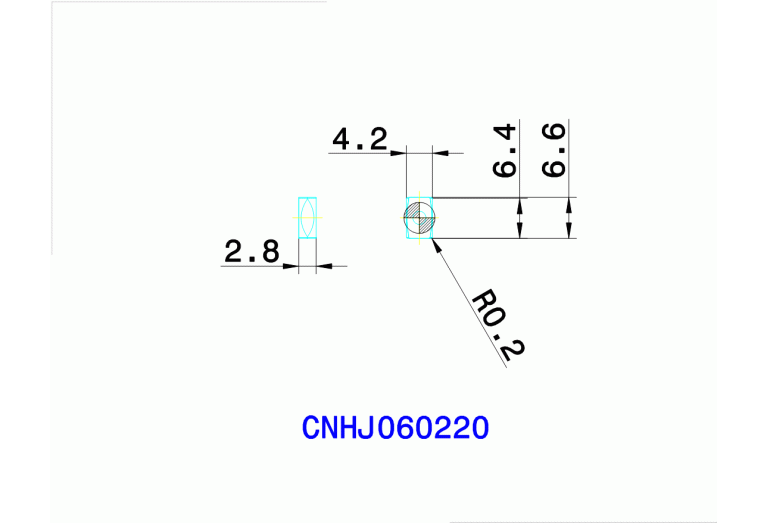

CNHJ060220 IN2006

Артикул: 6237060

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

7/1/2024

DIN

CN0602204R

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, positive geometry with R20

GRD2ND Standard designation of the grade 2nd application

M10-M30

GRD3RD Standard designation of the grade 3rd application

S10-S30

GRDMFG Grade manufacturers designation

IN2006

GRDPRIO Standard designation of the grade main application

P10-P30

IC Inscribed circle diameter

4.2 mm

ID Technical product number

6237060

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

6.6 mm

LE Cutting edge effective length

6.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

CN0602204R

Materials

P,H

Name Identifying order number

CNHJ060220 IN2006

RE Corner radius

0.2 mm

S Insert thickness

2.8 mm

S1 Insert thickness total

2.8 mm

TCINS Tolerance class insert

W1 Insert width

4.2 mm

Working process

No working processes available
