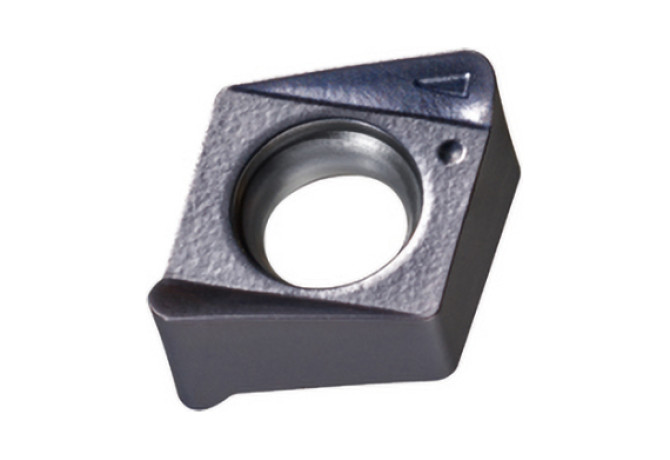

MNHU060312R IN2504

Артикул: 6317577

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

AlTiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

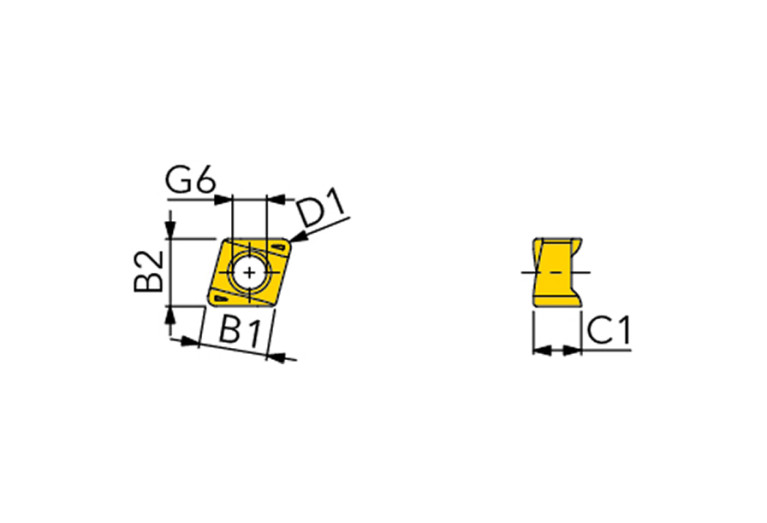

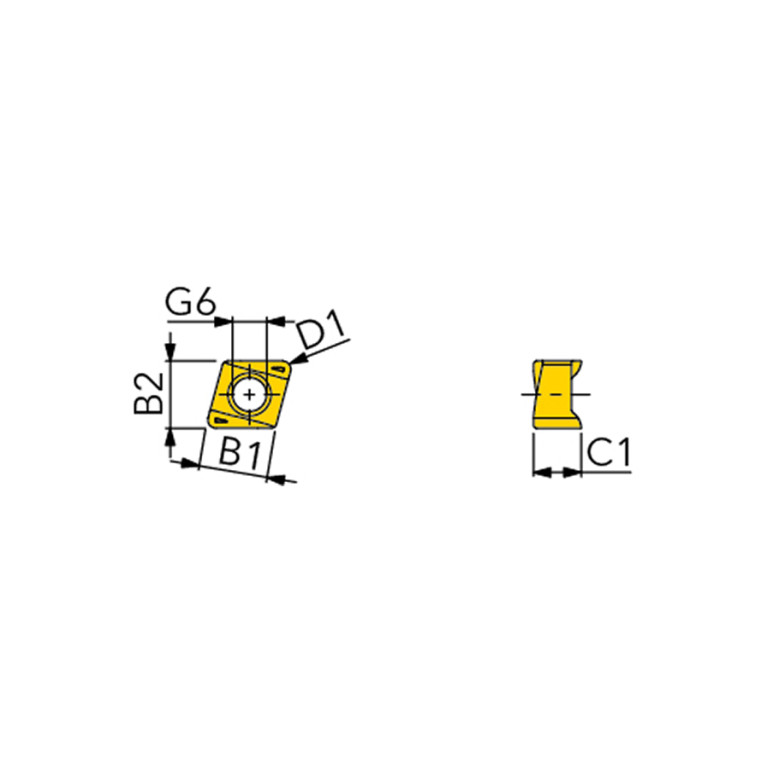

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

7/1/2024

DIN

MN0603123R

EPSR Insert included angle

73 Degree

FamilyProducts

insert, four-edged, positive geometry with R1,2

GRD2ND Standard designation of the grade 2nd application

K05-K25

GRD3RD Standard designation of the grade 3rd application

H05-H25

GRDMFG Grade manufacturers designation

IN2504

GRDPRIO Standard designation of the grade main application

P05-P25

IC Inscribed circle diameter

6.6 mm

ID Technical product number

6317577

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

4.91 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MN0603123R

Materials

P,H

Name Identifying order number

MNHU060312R IN2504

RE Corner radius

1.2 mm

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

TCINS Tolerance class insert

W1 Insert width

6.6 mm

Working process

No working processes available
