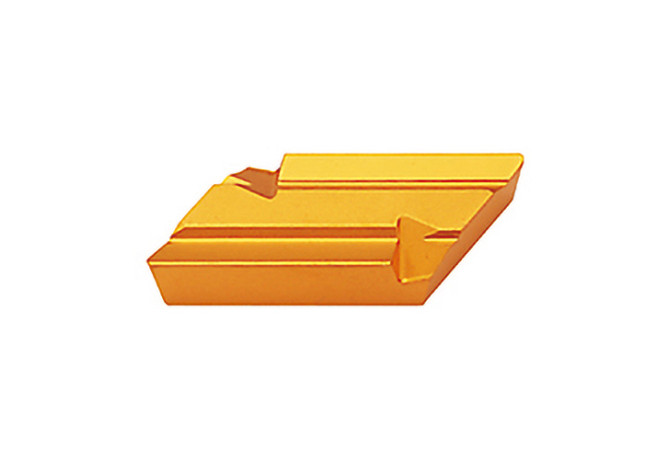

KNUX 160410 R12 TT8125B
KNUX 160410 R12 TT8125B
Артикул:
6234857
В наличии
Характеристики
AN Clearance angle major
0 Degree
COATN Coating
TiCN+Al2O3+TiN
COMPC Company code
IL - Ingersoll
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
7/1/2024
DIN
KN1604107R

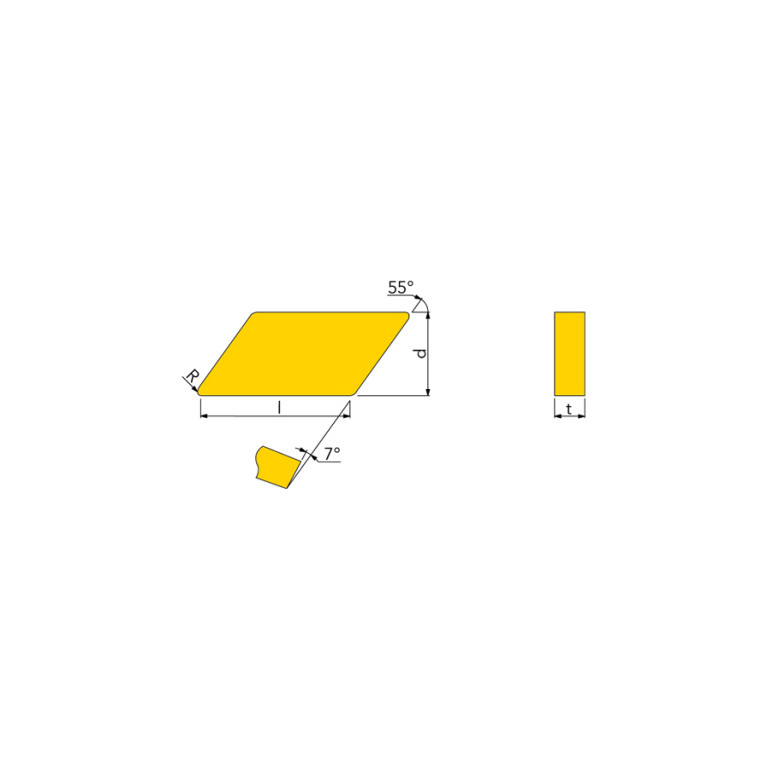

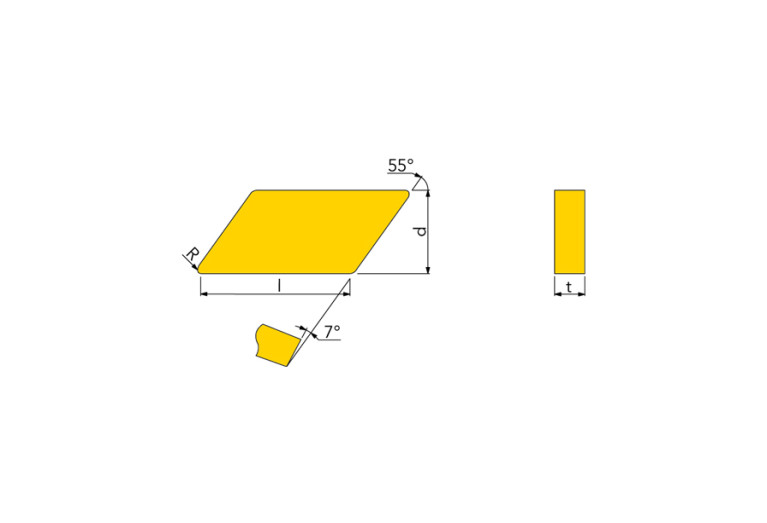

EPSR Insert included angle
55 Degree
FamilyProducts
insert, Negative 55° rhombic inserts for medium machining in profiling
GRDMFG Grade manufacturers designation
TT8125B
GRDPRIO Standard designation of the grade main application
P15-P30
IC Inscribed circle diameter
9.52 mm
ID Technical product number
6234857
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
18.8 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
KN1604107R
Materials
P
Name Identifying order number
KNUX 160410 R12 TT8125B
RE Corner radius
1 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
U - Not treated
Working process
No working processes available
