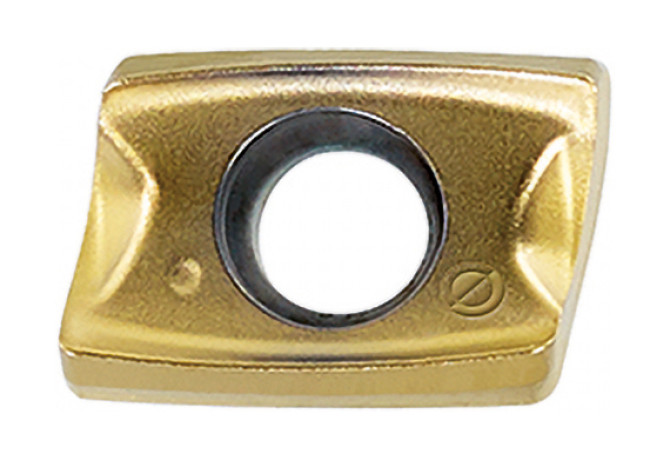

FNKT050204R-M IN2505

Артикул: 6237698

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

1.9 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4292

EPSR Insert included angle

79 Degree

FamilyProducts

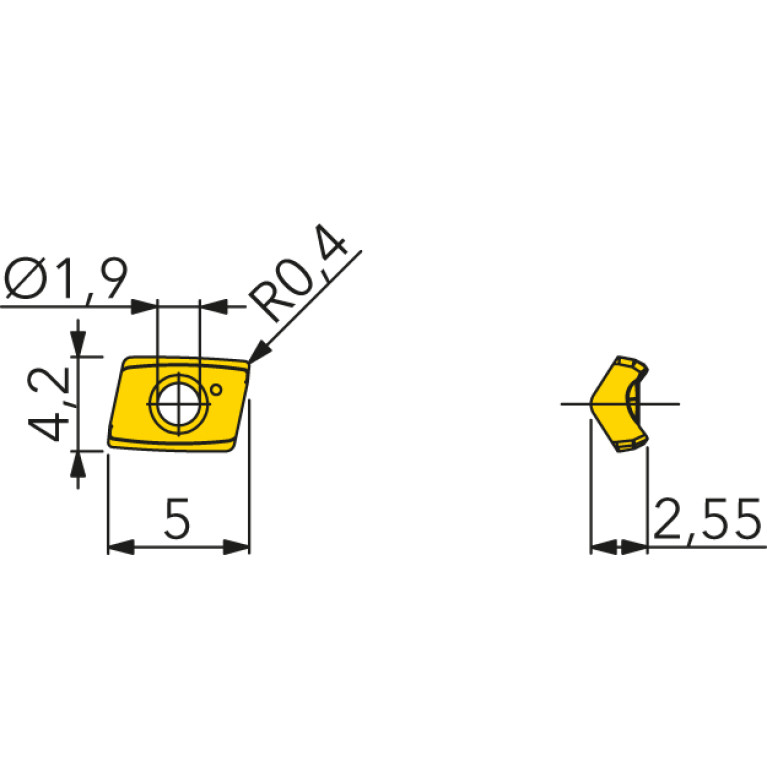

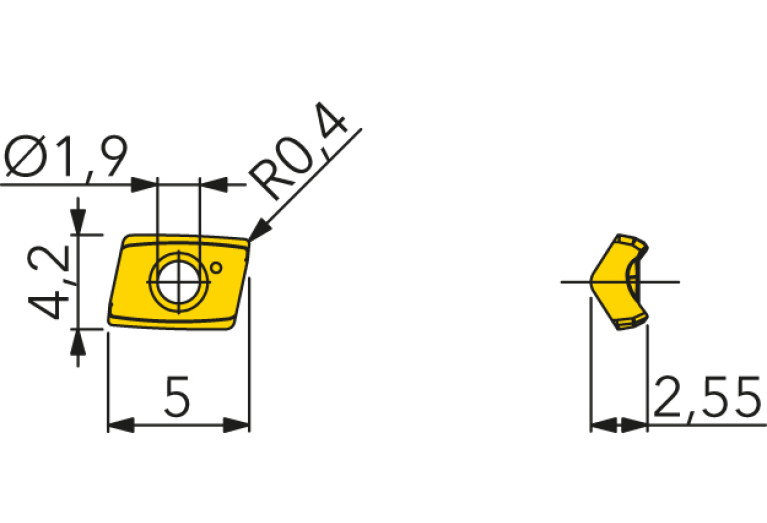

insert, double-edged, positive geometry with R0,4

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

4.2 mm

ID Technical product number

6237698

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4292

Materials

P,M,S

Name Identifying order number

FNKT050204R-M IN2505

RE Corner radius

0.4 mm

S Insert thickness

2.55 mm

S1 Insert thickness total

1.9 mm

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

6.3 mm

Working process

No working processes available
