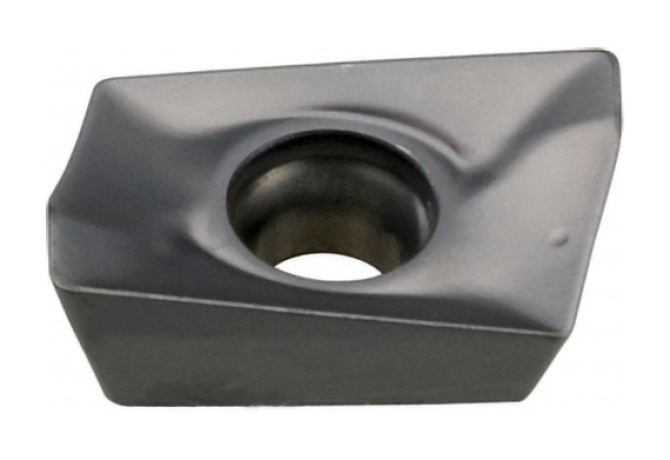

Главная Каталог продукции Toolunited 13 201-05 - Parallelogram-shaped insert BOMT09T304R IN2036

BOMT09T304R IN2036

Артикул: 3723526

В наличии

В корзину

Описание

Характеристики

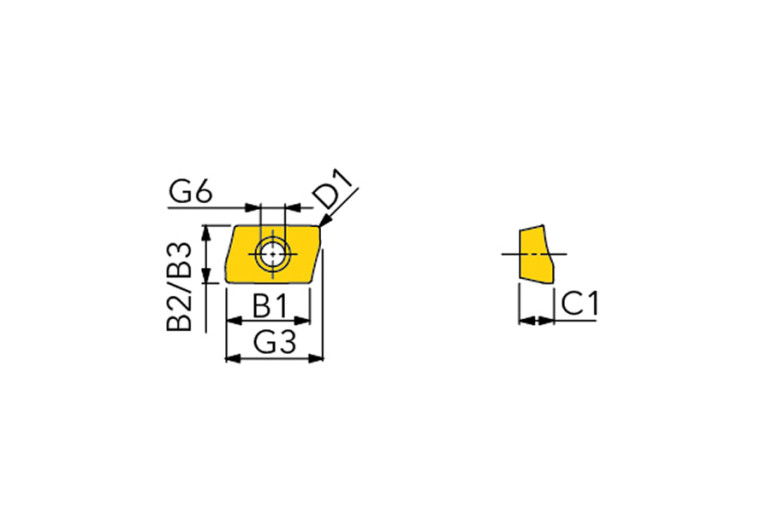

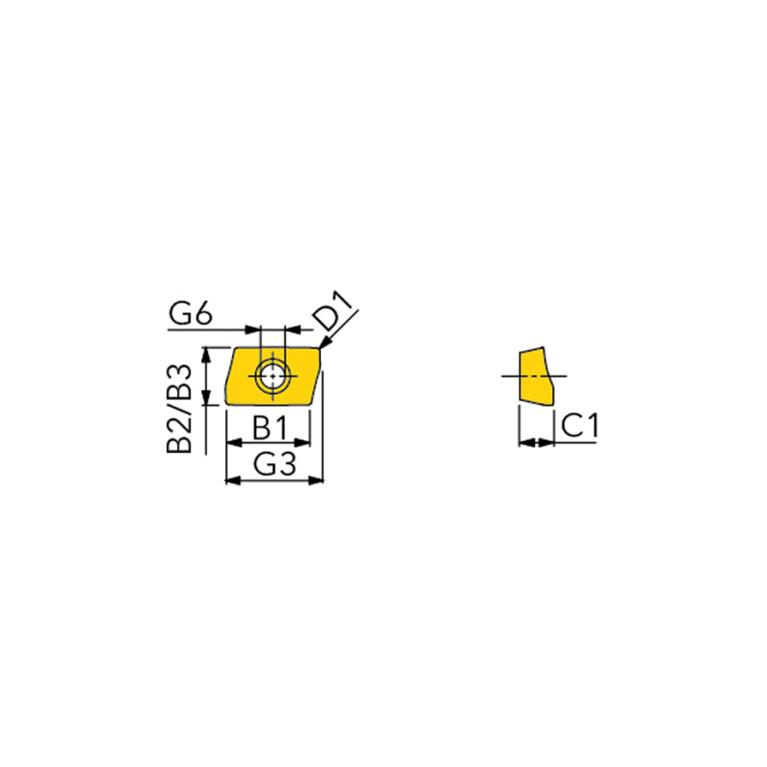

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

AlTiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/1/2024

DIN

BO09T3043R

EPSR Insert included angle

82 Degree

FamilyProducts

insert, double-edged, positive geometry with R0,4

GRD2ND Standard designation of the grade 2nd application

S30-S50

GRDMFG Grade manufacturers designation

IN2036

GRDPRIO Standard designation of the grade main application

M30-M50

IC Inscribed circle diameter

6.6 mm

ID Technical product number

3723526

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

8.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

BO09T3043R

Name Identifying order number

BOMT09T304R IN2036

RE Corner radius

0.4 mm

S Insert thickness

3.75 mm

S1 Insert thickness total

3.75 mm

TCINS Tolerance class insert

W1 Insert width

6.6 mm

Working process

No working processes available
