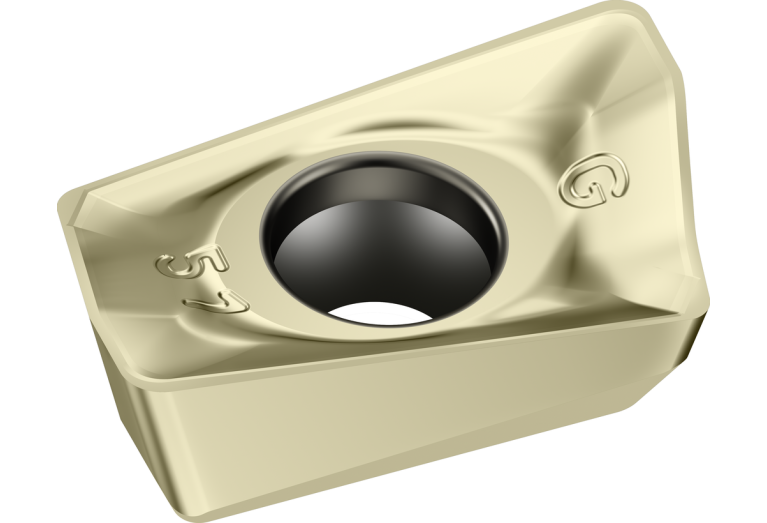

BCGT160508R-G51 WKP35G
BCGT160508R-G51 WKP35G
Артикул:
8457188
В наличии
Характеристики

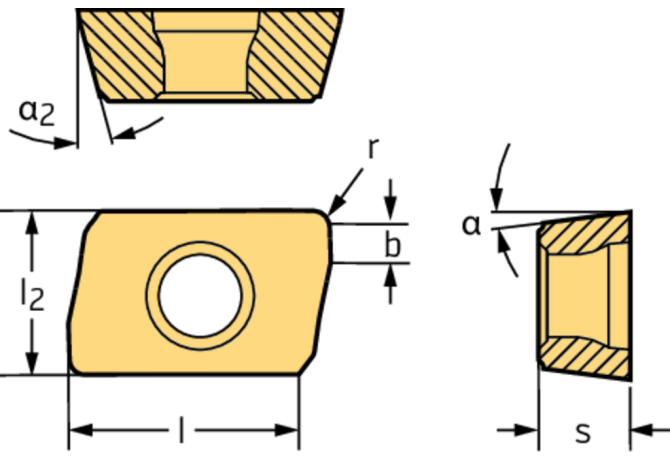

AN Clearance angle major
7 Degree
ANN Clearance angle minor
15 Degree
BS Wiper edge length
2 mm
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
G51
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
TiAlN+TiN
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
6/1/2024
DIN
W-BC1605083RB$$08
EPSR Insert included angle
82 Degree
FamilyProducts
Positive rhombic BCGT
GRDMFG Grade manufacturers designation
WKP35G
ID Technical product number
8457188
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$BC1605083RB$$08
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
17.3 mm
LOC-03 ISO
WR$$BC1605083RB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-BC1605083RB$$08
Name Identifying order number
BCGT160508R-G51 WKP35G
NOI Insert index count
2
RE Corner radius
0.8 mm
S Insert thickness
5.75 mm
S1 Insert thickness total
4.2 mm
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
G
W1 Insert width
9.9 mm
Working process
FPL - Face milling
WT Weight of item
0.008 kg
