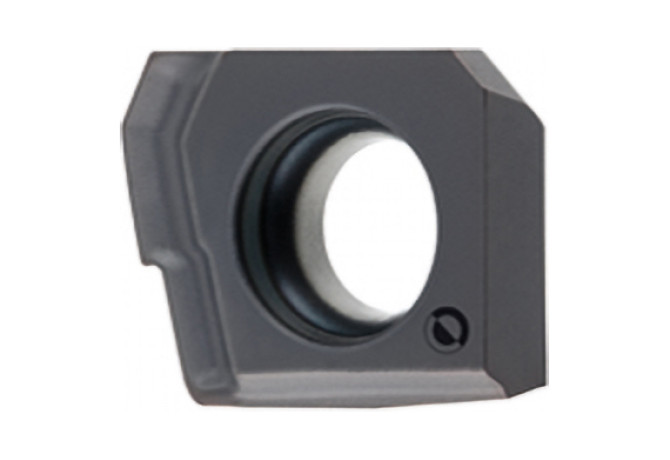

ZPHT060204R-DT IN2005

Артикул: 4800602

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.9 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4483

FamilyProducts

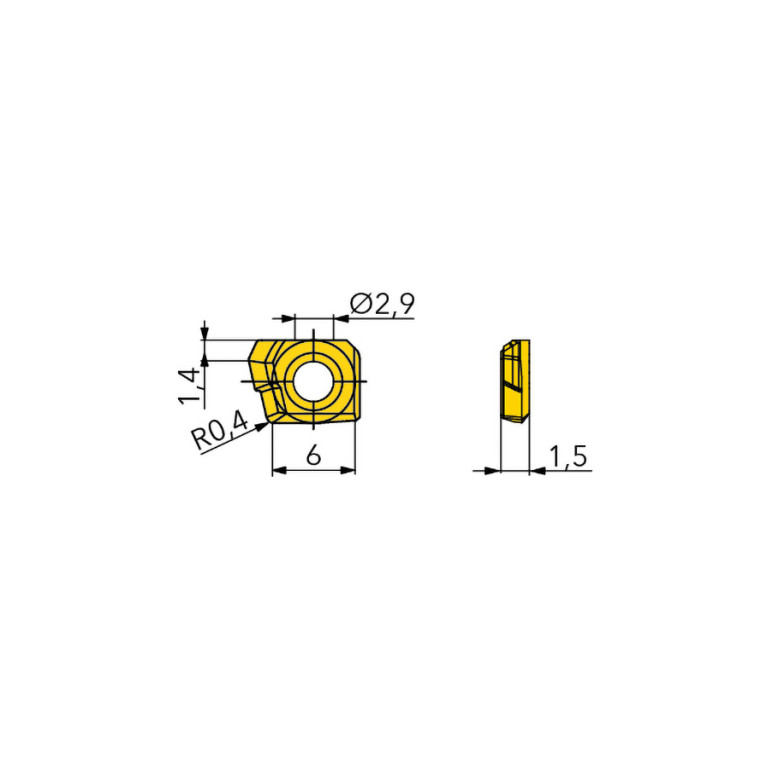

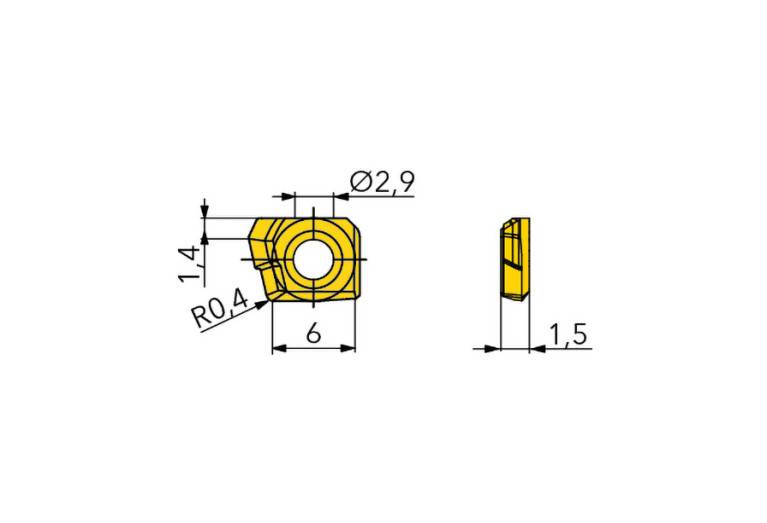

insert, positive DT-wiper geometry R0,4

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

6 mm

ID Technical product number

4800602

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4483

Materials

P,M,K,S

Name Identifying order number

ZPHT060204R-DT IN2005

RE Corner radius

0.4 mm

TCE Tipped cutting edge code

Working process

No working processes available
