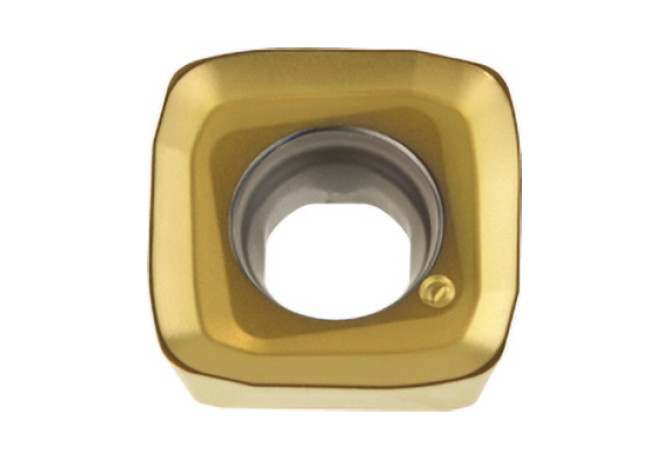

SDXS1305MPR-MM IN6537

Артикул: 3723672

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

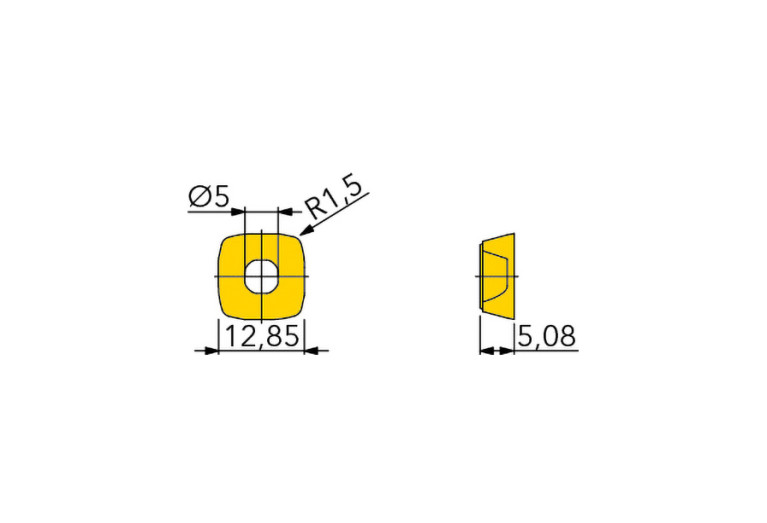

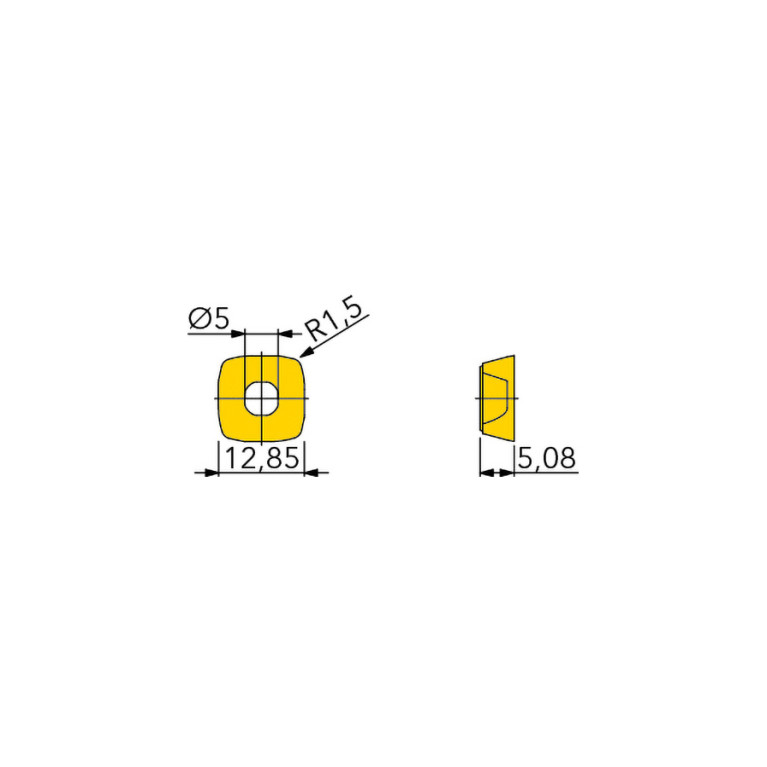

D1 Fixing hole diameter

5 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4458

EPSR Insert included angle

5 Degree

FamilyProducts

insert, 4-edged, positive geometry, convex, landed

FLSC Face land size code

GRD2ND Standard designation of the grade 2nd application

M30-M45

GRD3RD Standard designation of the grade 3rd application

K30-K45

GRDMFG Grade manufacturers designation

IN6537

GRDPRIO Standard designation of the grade main application

P30-P45

IC Inscribed circle diameter

12.85 mm

ID Technical product number

3723672

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4458

Materials

P,M,K

Name Identifying order number

SDXS1305MPR-MM IN6537

RE Corner radius

1.5 mm

S Insert thickness

5.08 mm

S1 Insert thickness total

5.08 mm

TCE Tipped cutting edge code

Working process

No working processes available
