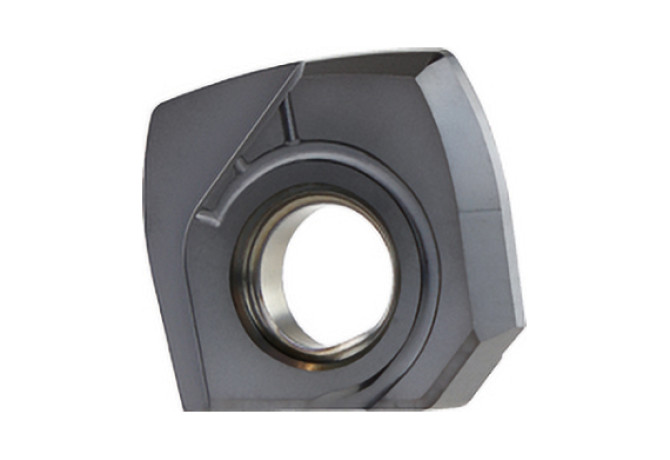

NQHL2005R40 IN2006

Артикул: 6240765

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

H10-H

CEMR Cutting edge major radius

40 mm

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.4 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4514

FamilyProducts

Lens shape insert

GRD2ND Standard designation of the grade 2nd application

M10-M30

GRD3RD Standard designation of the grade 3rd application

S10-S30

GRDMFG Grade manufacturers designation

IN2006

GRDPRIO Standard designation of the grade main application

P10-P30

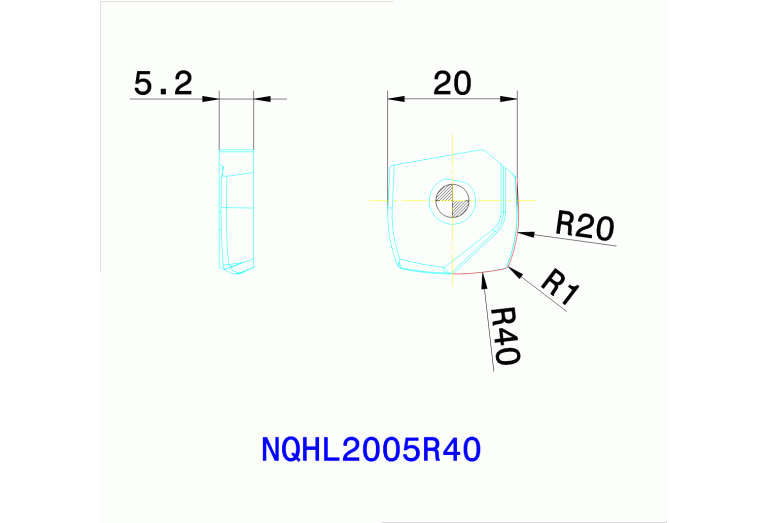

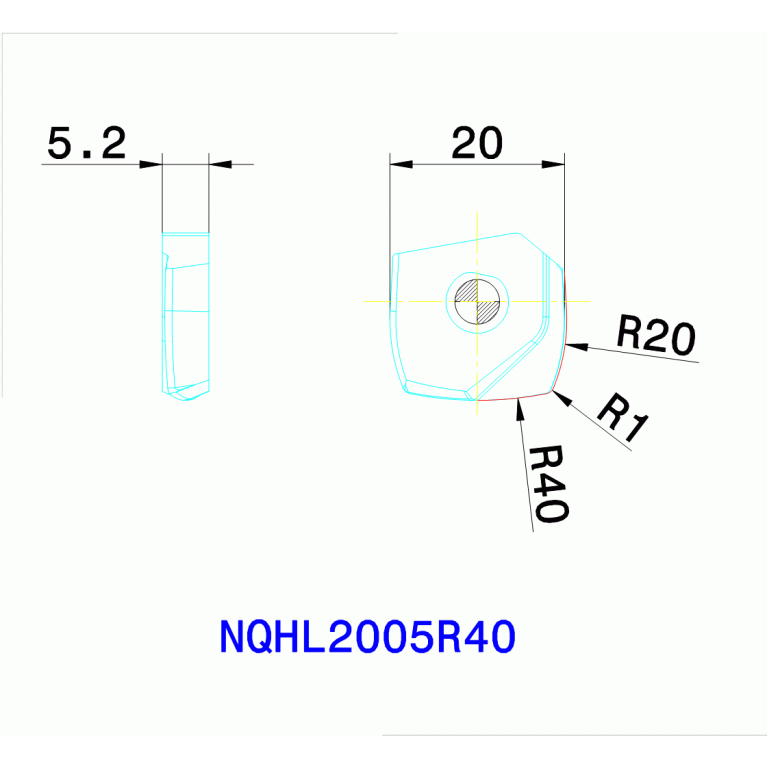

IC Inscribed circle diameter

20 mm

ID Technical product number

6240765

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4514

Materials

P,H

Name Identifying order number

NQHL2005R40 IN2006

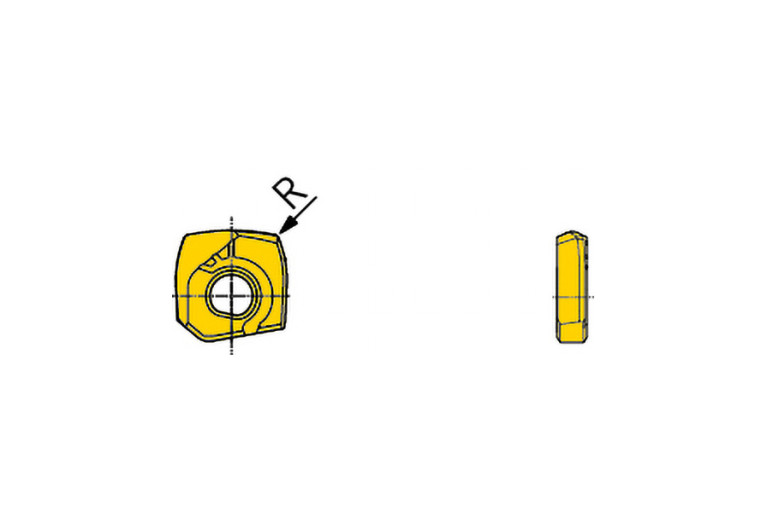

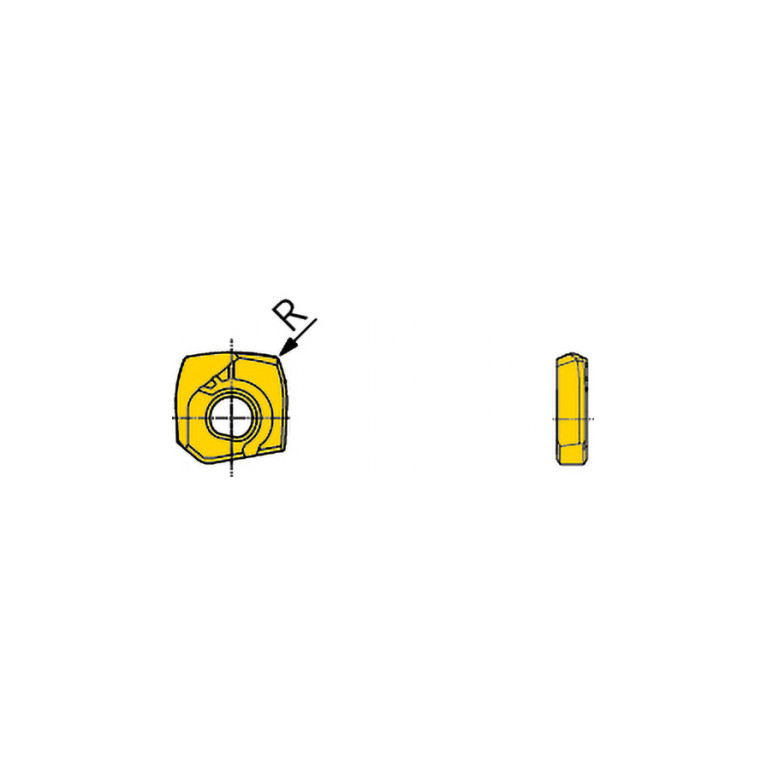

RE Corner radius

1 mm

S Insert thickness

5.2 mm

S1 Insert thickness total

5.2 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
