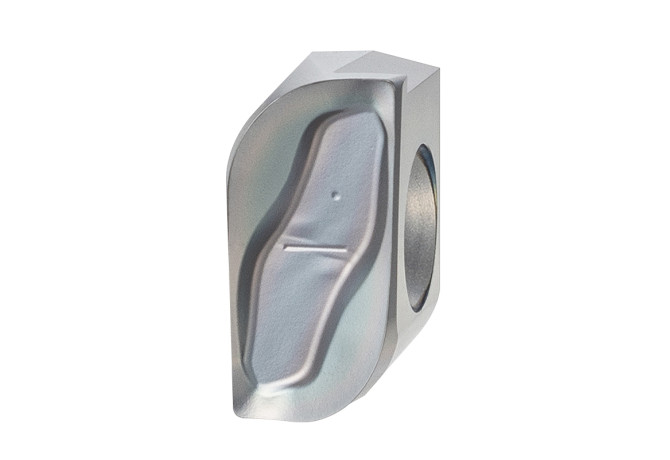

LOGT120650ER-GM PR1810

Артикул: TLS00171

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

MEGACOAT NANO EX

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

K10

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.55 mm

Delivery state valid from

10/1/2024

DIN

KYO-LO12063R

EPSR Insert included angle

90 Degree

FamilyProducts

MA90 insert for milling

GRDMFG Grade manufacturers designation

PR1810

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

6.6 mm

ID Technical product number

TLS00171

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

13.28 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KYO-LO12063R

Materials

Name Identifying order number

LOGT120650ER-GM PR1810

NOI Insert index count

RE Corner radius

5 mm

S Insert thickness

9.4 mm

TCINS Tolerance class insert

W1 Insert width

6.6 mm

Working process

No working processes available

WT Weight of item

0.07 kg
