Главная Каталог продукции Toolunited 13 201-00 - Regular Insert unspecified 6NMU0906040PNER-M MP7130

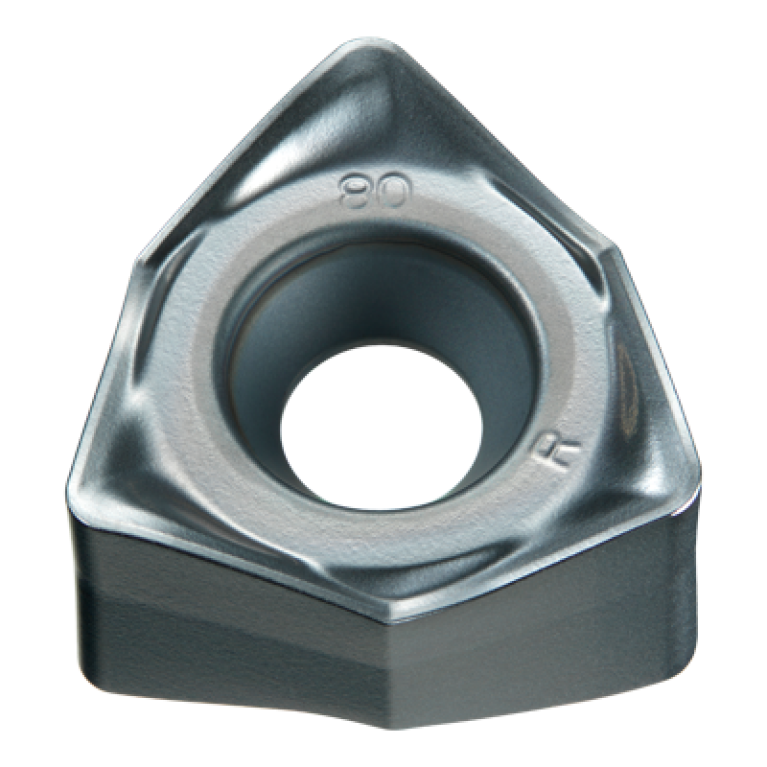

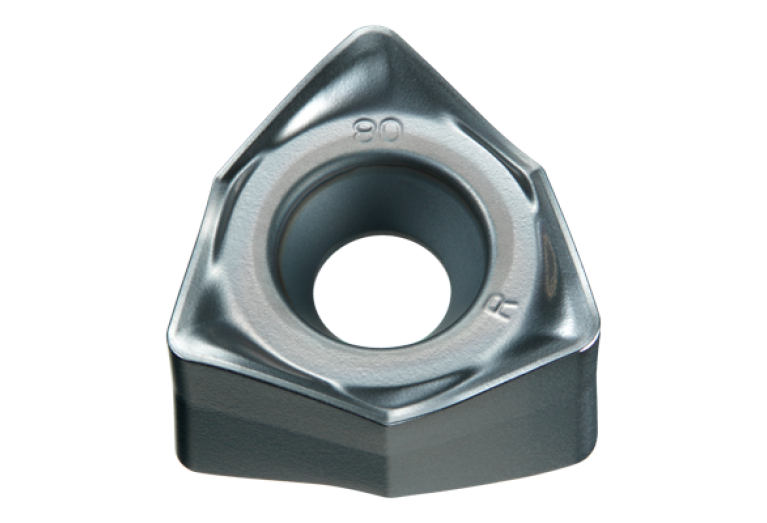

6NMU0906040PNER-M MP7130

6NMU0906040PNER-M MP7130 6NMU0906040PNER-M MP7130 6NMU0906040PNER-M MP7130 6NMU0906040PNER-M MP7130

6NMU0906040PNER-M MP7130

Mitsubishi Materials
Артикул: 22852250
В наличии
В корзину
Описание
Характеристики

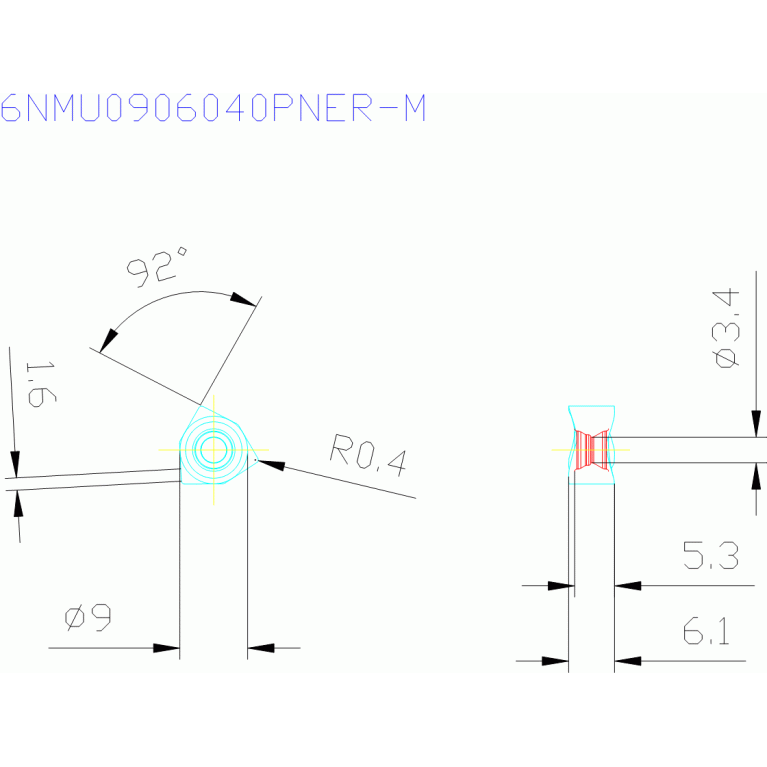

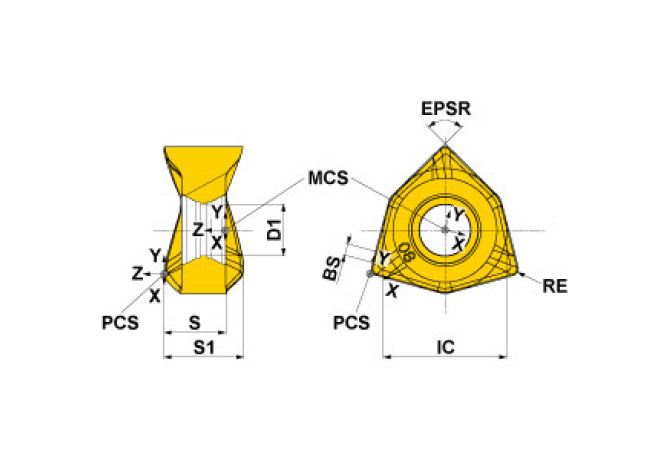

AN Clearance angle major
0 Degree
BS Wiper edge length
1.6 mm
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
M
CECC Cutting edge condition code
E - Rounded
COATN Coating
(Al,Ti)N-Ti Compound
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
3.4 mm
Delivery state valid from
10/2/2020
EPSR Insert included angle
92 Degree
FamilyProducts
Insert for WWX200
GRDMFG Grade manufacturers designation
MP7130
IC Inscribed circle diameter
9 mm
ID Technical product number
22852250
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
MI$$6N0906043RB$$04
ISYC Subclass
201-00 - Regular Insert unspecified
KRINS Cutting edge angle major
87 Degree
LOC-03 ISO
MI$$6N0906043RB$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
6NMU0906040PNER-M MP7130
NOI Insert index count
6
RE Corner radius
0.4 mm
S Insert thickness
5.3 mm
S1 Insert thickness total
6.1 mm
TCE Tipped cutting edge code
S
Working process
No working processes available
