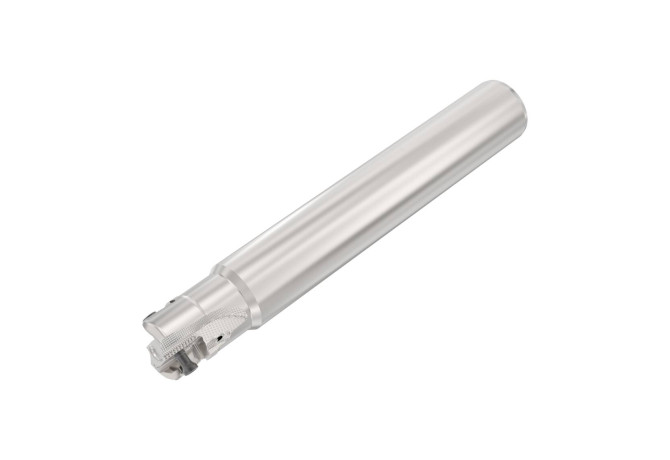

Главная Каталог продукции Toolunited 13 307-01 - Non-centre cutting single row end mill R217.94-2525.0-LO12-2A

R217.94-2525.0-LO12-2A

R217.94-2525.0-LO12-2A R217.94-2525.0-LO12-2A R217.94-2525.0-LO12-2A R217.94-2525.0-LO12-2A

R217.94-2525.0-LO12-2A

SECO Tools
Артикул: 10207966
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
12 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/28/2024
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R217.94-2525.0-LO12-2A
GAMF Rake angle radial
-31 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
10207966
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL01G2500h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
170 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL01G2500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
114 mm
LS Shank length
135 mm
LU Usable length
35 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
R217.94-2525.0-LO12-2A
OAL Overall length
170 mm
RPMX Rotational speed maximum
14000 1/min
Working process
No working processes available
WT Weight of item
0.57 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
