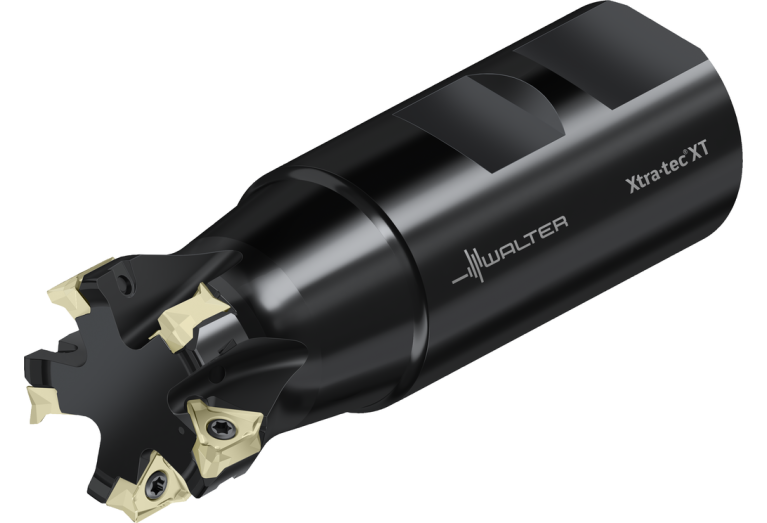

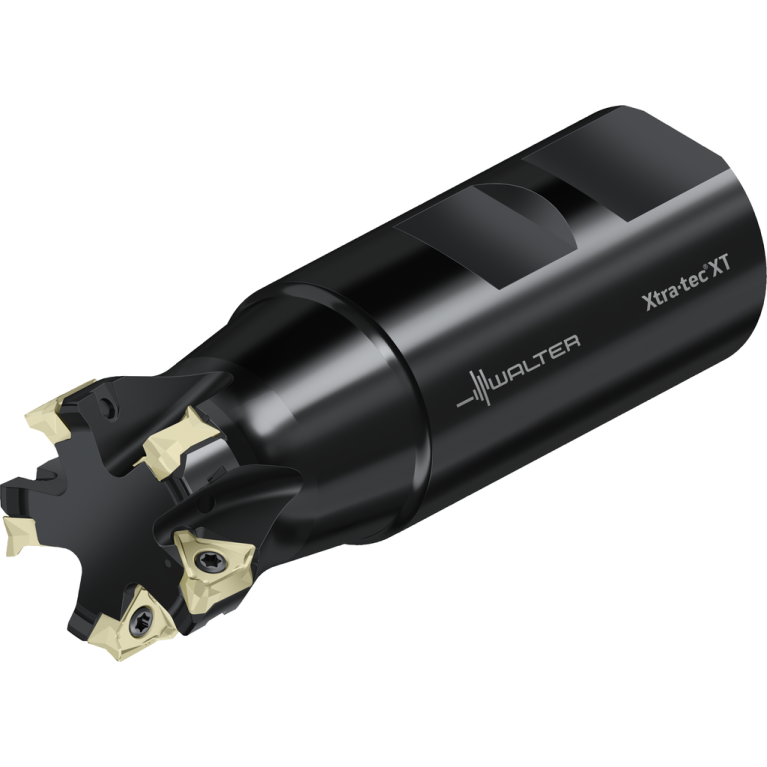

Главная Каталог продукции Toolunited 13 307-01 - Non-centre cutting single row end mill M5137.031-W26-04-05

M5137.031-W26-04-05

Артикул: 8625965

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

5 mm

AZ Plunge depth maximum

0.41 mm

BD Body diameter

30.75 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

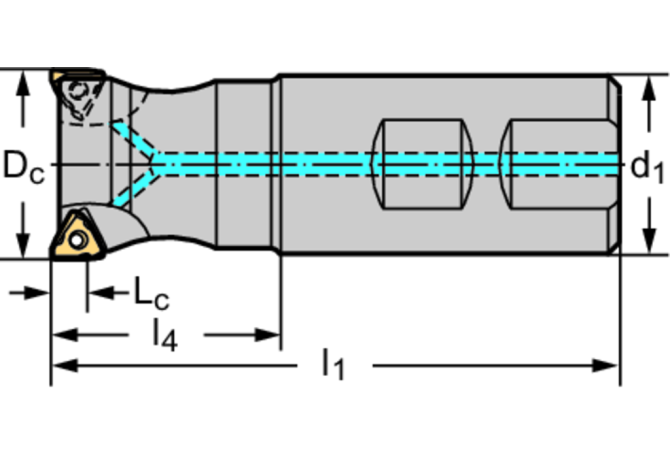

DC Cutting diameter

31.75 mm

Delivery state valid from

12/1/2024

DIN

ZYL10001035

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters M5137

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

8625965

Interface codes

J6 / J61

ISO

ZYL10S1000h$06

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LF Functional length

58.968 mm

LH Head length

30 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL10S1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001035

LPR Protruding length

30 mm

LU Usable length

30 mm

Name Identifying order number

M5137.031-W26-04-05

OAL Overall length

87.94 mm

RMPX Ramping angle maximum

3.1 Degree

RPMX Rotational speed maximum

21600 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO3338-2

TCDCONMS ISO-tolerance class shank diameter

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.32 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
