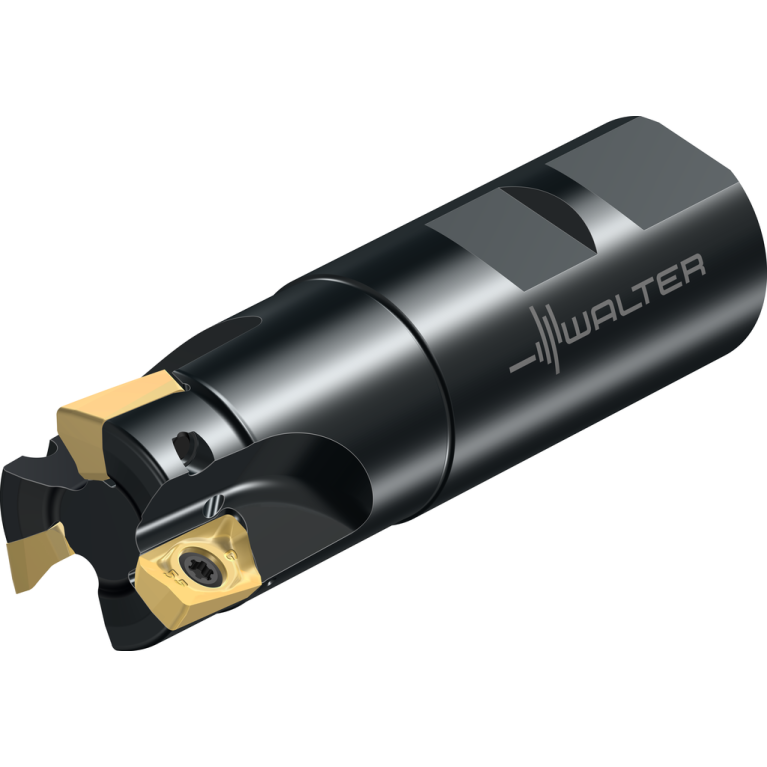

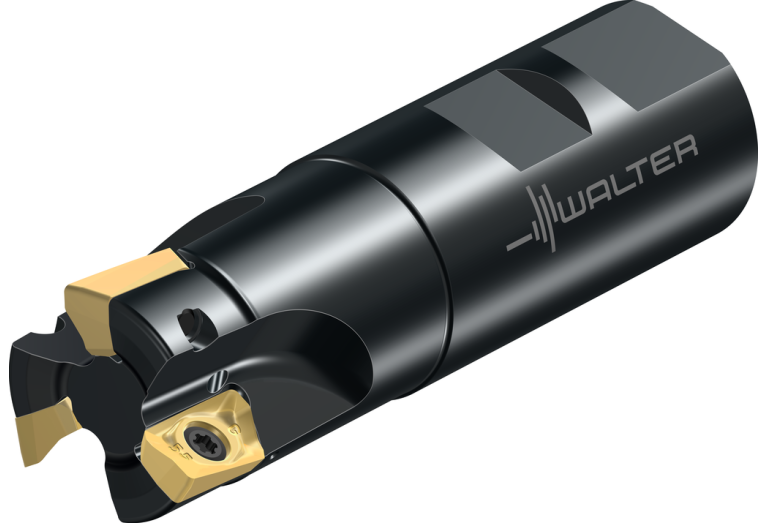

Главная Каталог продукции Toolunited 13 307-01 - Non-centre cutting single row end mill M5130.026-W19-02-15

M5130.026-W19-02-15

Артикул: 8625962

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

15 mm

AZ Plunge depth maximum

1.437 mm

BD Body diameter

23.62 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

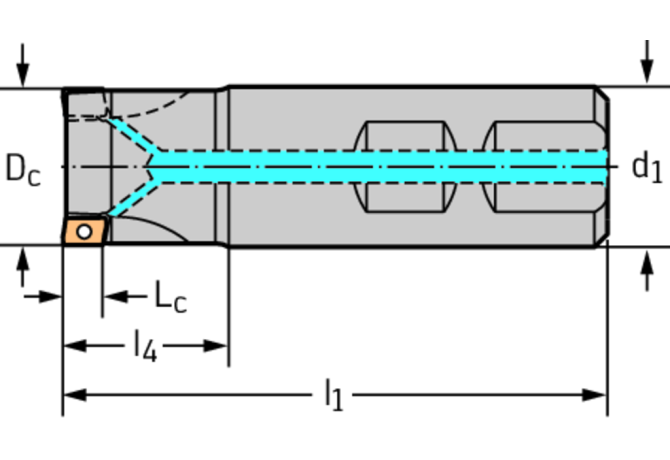

DC Cutting diameter

25.4 mm

Delivery state valid from

12/1/2024

DIN

ZYL07501035

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters M5130

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

8625962

Interface codes

J6 / J61

ISO

ZYL10R7500$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LF Functional length

72.703 mm

LH Head length

47 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 ISO

ZYL10R7500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07501035

LPR Protruding length

47 mm

LU Usable length

46.99 mm

Name Identifying order number

M5130.026-W19-02-15

OAL Overall length

98.5 mm

RMPX Ramping angle maximum

9.362 Degree

RPMX Rotational speed maximum

22100 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO3338-2

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.19 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
