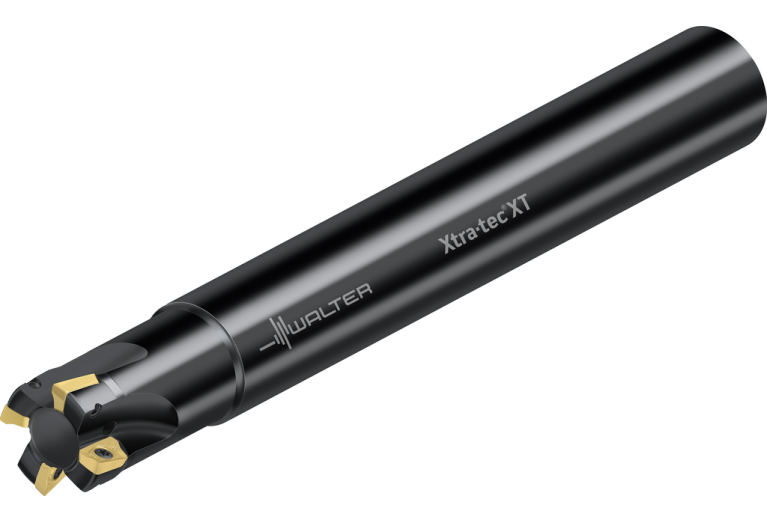

Главная Каталог продукции Toolunited 13 307-01 - Non-centre cutting single row end mill M5130.026-A26-04-09

M5130.026-A26-04-09

Артикул: 8562227

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

9 mm

AZ Plunge depth maximum

0.601 mm

BD Body diameter

24.15 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

25.4 mm

Delivery state valid from

12/1/2024

DIN

ZYL10000135

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters M5130

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

8562227

Interface codes

J6 / J61

ISO

ZYL01S1000$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LF Functional length

203.2 mm

LH Head length

44.45 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 ISO

ZYL01S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10000135

LPR Protruding length

44.45 mm

LU Usable length

44.45 mm

Name Identifying order number

M5130.026-A26-04-09

OAL Overall length

203.2 mm

RMPX Ramping angle maximum

3.676 Degree

RPMX Rotational speed maximum

35700 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.723 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
