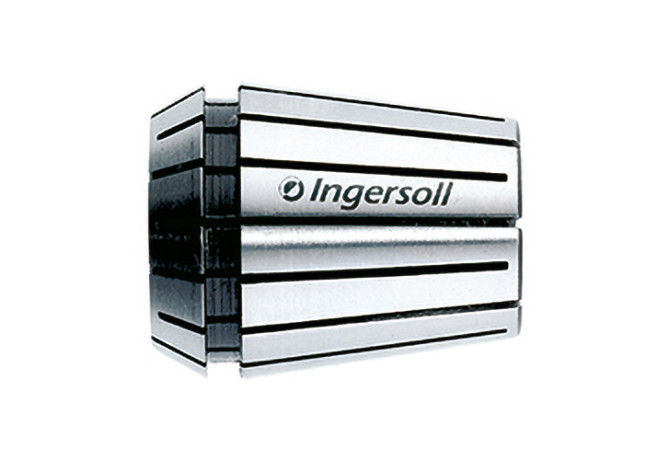

Главная Каталог продукции Toolunited 13 405-01 - Double angle collet ER40SEAL6AAJET

ER40SEAL6AAJET

Артикул: 3389853

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

IL - Ingersoll

CZCWS Connection size code

0060

DCB Connection bore diameter

6 mm

DCBN Connection bore diameter minimum

6 mm

DCBX Connection bore diameter maximum

6 mm

Delivery state valid from

2/27/2024

DFC Functional diameter

40 mm

DIN

SZD04000295

FamilyProducts

ER40 Jet2 Spring Collets with coolant

ID Technical product number

3389853

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

31 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0060

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00600115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000295

LSC Clamping length

10.5 mm

Name Identifying order number

ER40SEAL6AAJET

OAL Overall length

46 mm

SEALP Sealing

1 - With sealing

SZID Size identification

TA Taper angle 1

16 Degree

TA Taper angle 2

60 Degree

UNNO Unified number

472E

WT Weight of item

0.324 kg
