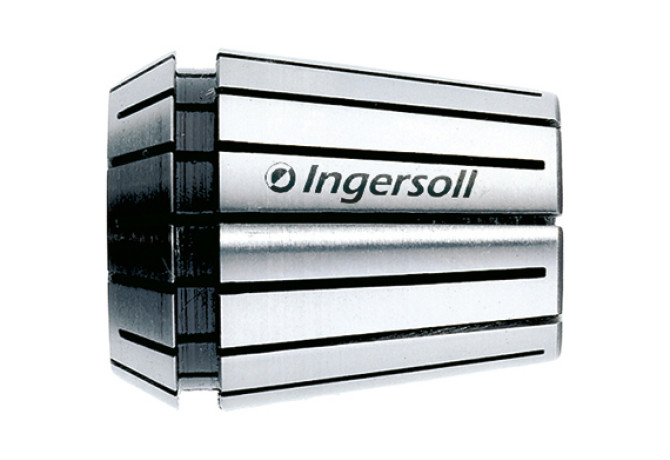

Главная Каталог продукции Toolunited 13 405-01 - Double angle collet ER16SPR1.5-2

ER16SPR1.5-2

Артикул: 4504260

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

IL - Ingersoll

CZCWS Connection size code

0020

DCBN Connection bore diameter minimum

1.5 mm

DCBX Connection bore diameter maximum

2 mm

Delivery state valid from

7/1/2024

DFC Functional diameter

16 mm

DIN

SZD01600285

FamilyProducts

ER16 Spring Collets

ID Technical product number

4504260

Interface codes

J6 / J61

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

14.2 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0020

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00150105ZYL00200105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD01600285

LSC Clamping length

10.26 mm

Name Identifying order number

ER16SPR1.5-2

OAL Overall length

27.5 mm

SEALP Sealing

0 - Without sealing

SZID Size identification

TA Taper angle 1

16 Degree

TA Taper angle 2

60 Degree

WT Weight of item

0.022 kg
