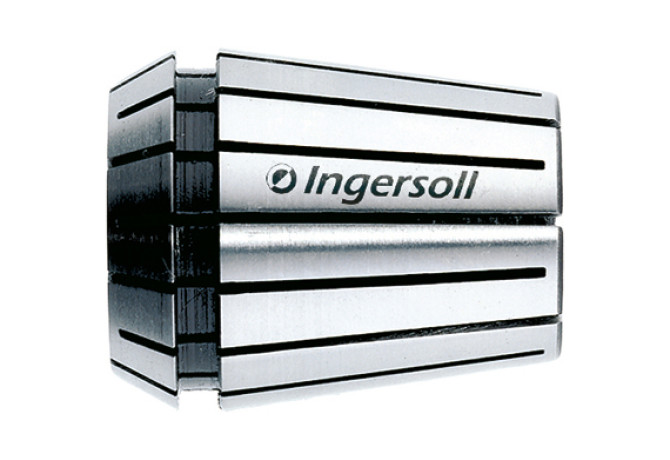

ER11SPR6.5-7.0AA
ER11SPR6.5-7.0AA
Артикул:
3301448
В наличии
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
IL - Ingersoll
CZCWS Connection size code
0070
DCBN Connection bore diameter minimum
6.5 mm
DCBX Connection bore diameter maximum
7 mm
Delivery state valid from
7/1/2024
DFC Functional diameter
11 mm
DIN
SZD01100285
FamilyProducts
ER11 AA Spring Collets
ID Technical product number
3301448
Interface codes
J6 / J61
ISYC Subclass
405-01 - Double angle collet

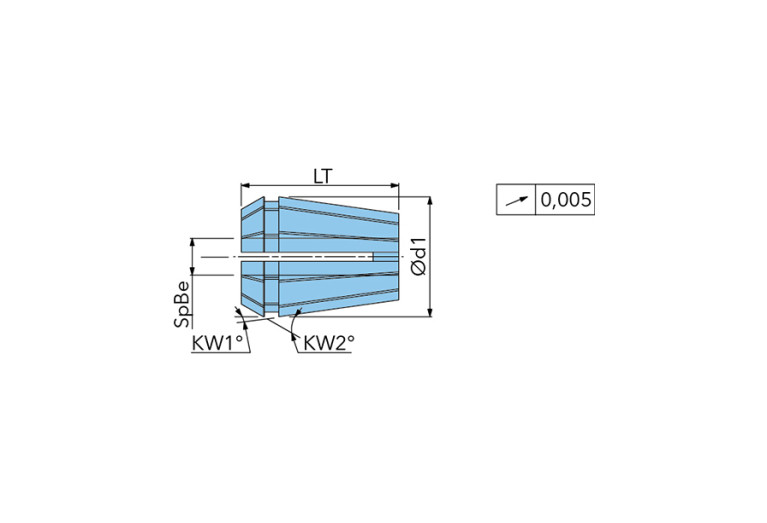

LCOL Collet length
18 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0070
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00650105ZYL00700105
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0110
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD01100285
LSC Clamping length
6.3 mm
Name Identifying order number
ER11SPR6.5-7.0AA
OAL Overall length
18 mm
SEALP Sealing
0 - Without sealing
SZID Size identification
11
TA Taper angle 1
16 Degree
TA Taper angle 2
60 Degree
WT Weight of item
0.006 kg
