XS1090032T1RT1
XS1090032T1RT1
Артикул:
6248016
В наличии
Характеристики
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/27/2024
DIN
ZYL01000115
FamilyProducts
Holder reaming head S - 3D / 5D (RT1)
HAND Cutting direction
R - Right
ID Technical product number
6248016
Interface codes
J6 /
ISYC Subclass
401-00 - Adaptive item converter, extender, reducer unspecified
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
IL-K-XT1
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000115
LPR Protruding length
31.5 mm
Name Identifying order number
XS1090032T1RT1

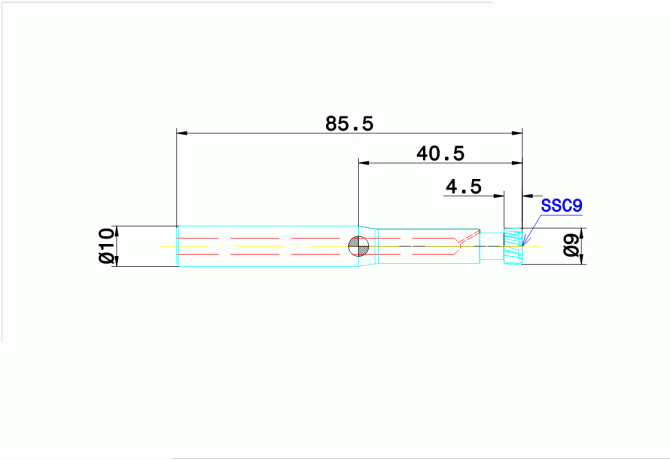

OAL Overall length
85.5 mm
WT Weight of item
0.035 kg
