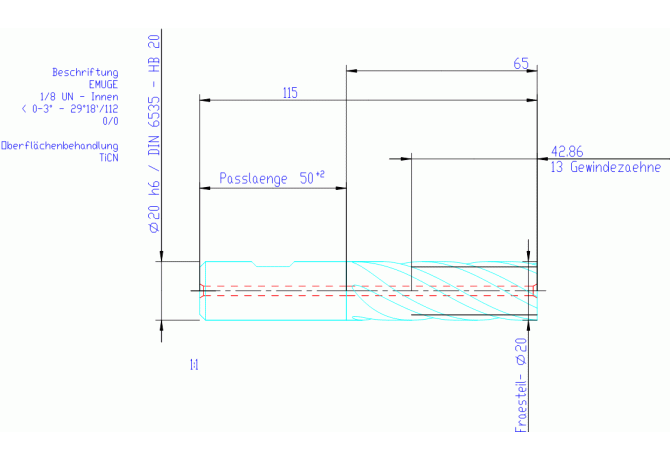

Главная Каталог продукции Toolunited 13 303-09 - Thread end mill GF162356.9589

GF162356.9589

Артикул: GF162356.9589

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TiCN

COMPC Company code

E - Emuge

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

19.9 mm

Delivery state valid from

2/1/2024

DIN

ZYL02001015

FamilyProducts

solid carbide thread milling cutters

FHH Flute helix hand

R - Hand of helix right

GRDMFG Grade manufacturers designation

VHM-TiCN

GRDPRIO Standard designation of the grade main application

VHM

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LF Functional length

90 mm

LH Head length

42.729 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001015

LPR Protruding length

65 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

GF162356.9589

OAL Overall length

115 mm

TDFR Thread diameter nominal fraction

1 in

THFT Thread form type

TP Thread pitch

3.175 mm

TPI Threads per inch

8 1/in

Working process

FSC - Thread milling

WT Weight of item

0.404 kg

ZEFP Peripheral effective cutting edge count
