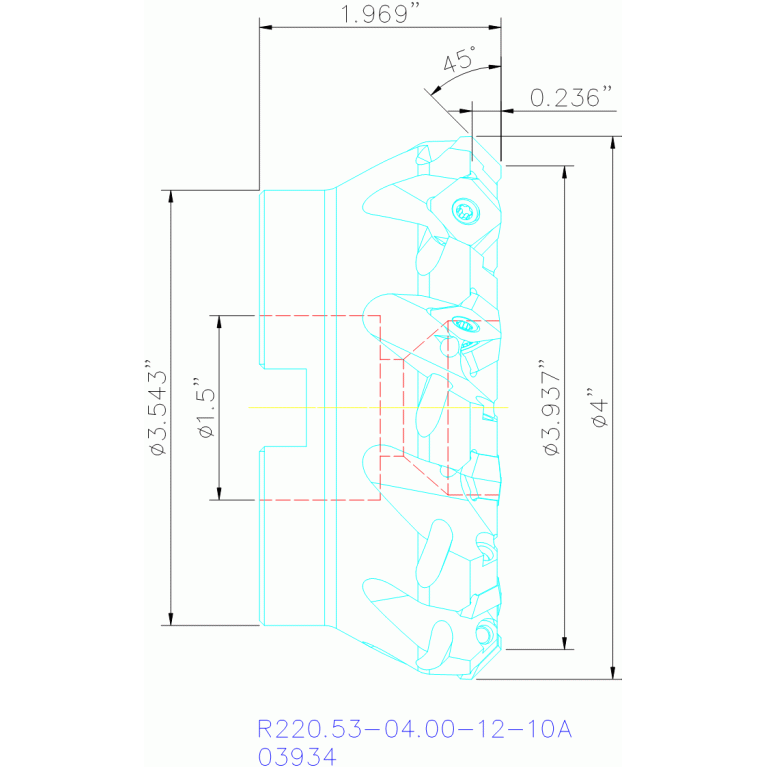

R220.53-04.00-12-10A
R220.53-04.00-12-10A
Артикул:
02422147
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6 mm
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
2 - With Coolant exit, radial

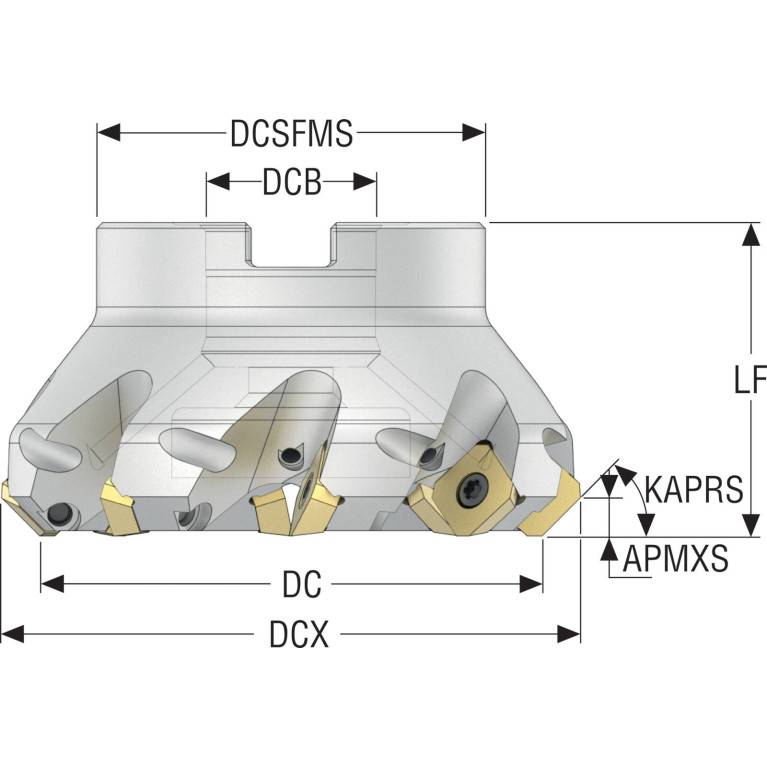

DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
112 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
90 mm
DIN
FDA15002230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
R220.53-04.00-12-10A
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
20 Degree
HAND Cutting direction
R - Right
ID Technical product number
02422147
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002230
Name Identifying order number
R220.53-04.00-12-10A
OAL Overall length
50 mm
RPMX Rotational speed maximum
10500 1/min
Working process
No working processes available
WT Weight of item
2.1 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
