Главная Каталог продукции Toolunited 13 308-01 - Face milling cutter M5008.076-B26-12-01

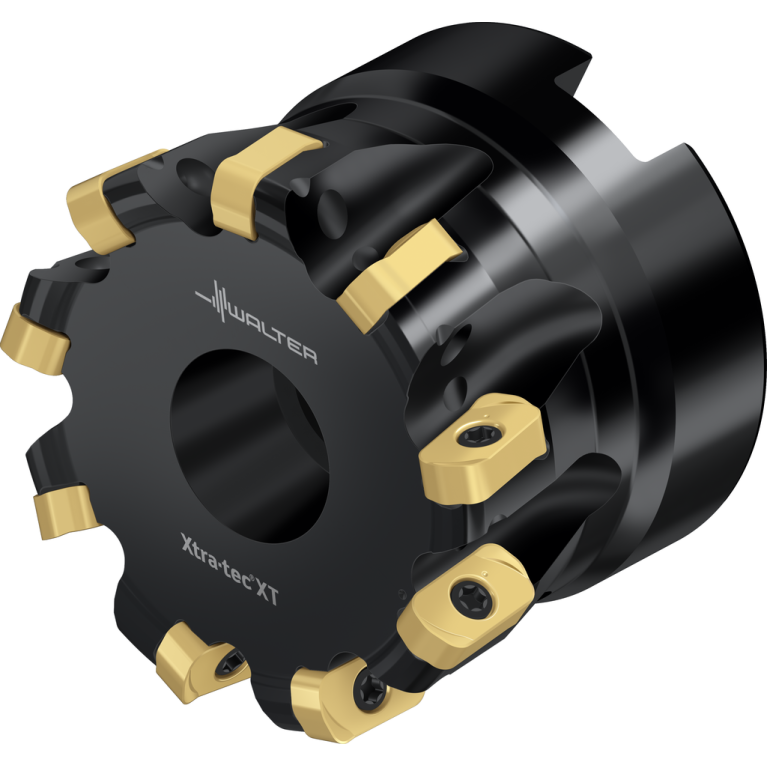

M5008.076-B26-12-01

M5008.076-B26-12-01 M5008.076-B26-12-01 M5008.076-B26-12-01

M5008.076-B26-12-01

Walter
Артикул: 8625879
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
0.27 mm
BD Body diameter
74.08 mm
BLDA Tool style code Position A
3
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
1 mm
CICT Cutting item count
12
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
70.3 mm
DCX Cutting diameter maximum
76.2 mm
Delivery state valid from
12/1/2024
DHUB Hub diameter
57.15 mm
DIN
FDA10001230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
12
FamilyProducts
High-feed milling cutter M5008
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
8625879
Interface codes
J6 / J61
ISO
FDA12S1000$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
15 Degree
LCCB Counterbore depth connection bore
14 mm
LF Functional length
50.8 mm
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA12S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10001230
Name Identifying order number
M5008.076-B26-12-01
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
0.268 Degree
RPMX Rotational speed maximum
15000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
ISO6462
Working process
FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.98 kg
ZEFF Face effective cutting edge count
12
ZEFP Peripheral effective cutting edge count
12
