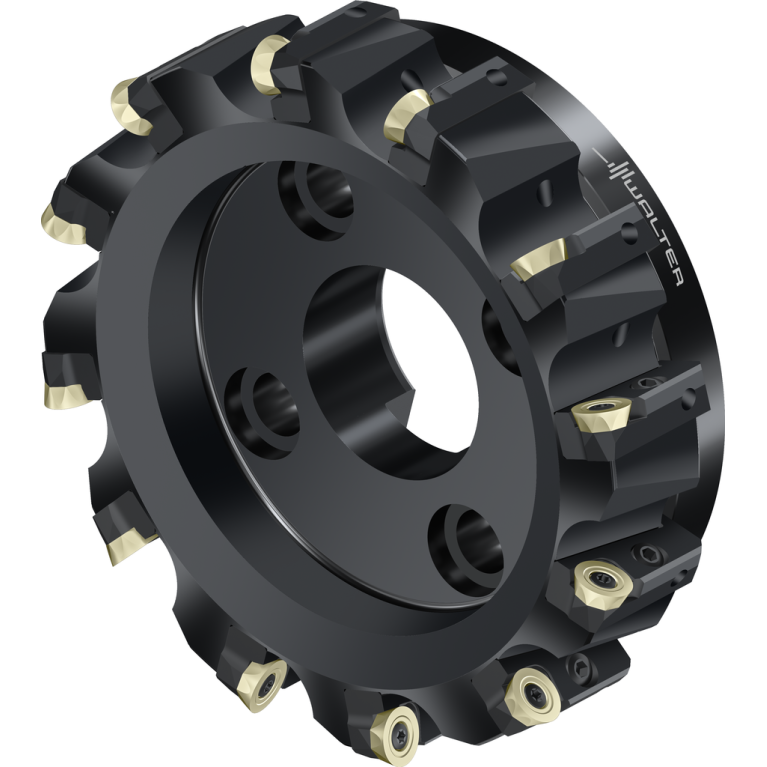

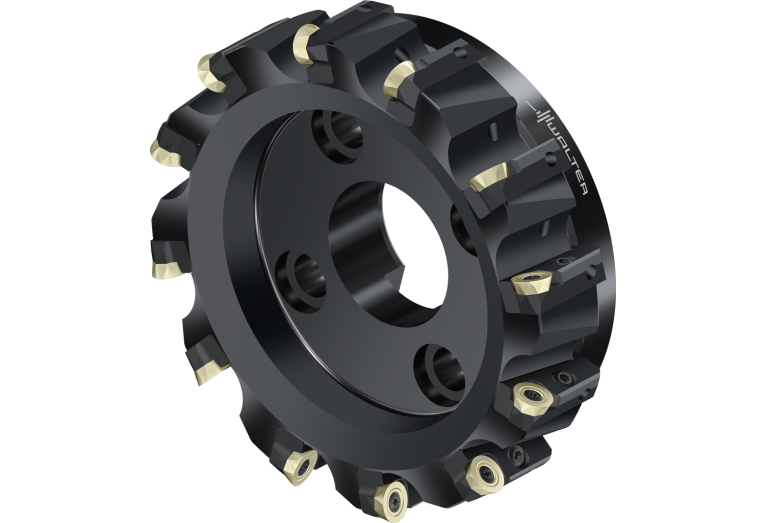

Главная Каталог продукции Toolunited 13 308-01 - Face milling cutter F2010.B.250.Z16.06.R771M

F2010.B.250.Z16.06.R771M

F2010.B.250.Z16.06.R771M F2010.B.250.Z16.06.R771M F2010.B.250.Z16.06.R771M

F2010.B.250.Z16.06.R771M

Walter
Артикул: 8549960
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.1 mm
B3A Inscribed circle diameter Pos. A
12 mm
BD Body diameter
245.2 mm
BLDA Tool style code Position A
10
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6 mm
CICT Cutting item count
16
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

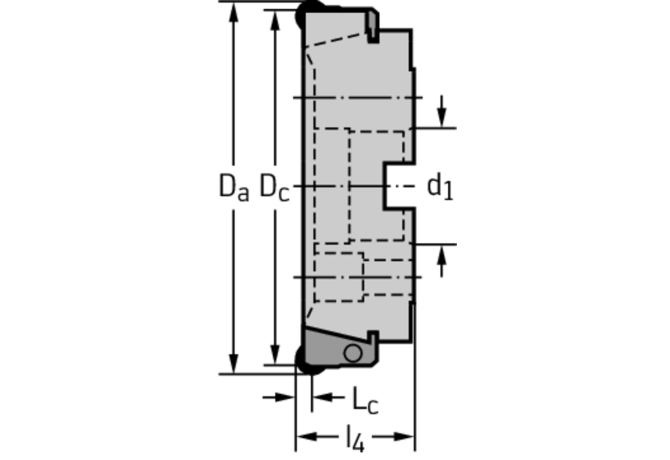

DC Cutting diameter
241 mm
DCX Cutting diameter maximum
253 mm
Delivery state valid from
6/1/2024
DHUB Hub diameter
223.8 mm
DIN
SPK06000203
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
16
FamilyProducts
Copy milling cutters with round inserts F2010
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
8549960
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SPK02G6000$$$$
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 CCTMS Type
SPK Spindle nose mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03 ISO
SPK02G6000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK06000203
Name Identifying order number
F2010.B.250.Z16.06.R771M
OAL Overall length
65 mm
RMPX Ramping angle maximum
0.1 Degree
RPMX Rotational speed maximum
3800 1/min
STDLET Standard letter to the standard number
C
STDNO Standard
ISO6462
Working process
FFO - Die milling,FPL - Face milling,FZI - Circular milling
WT Weight of item
16.3 kg
ZEFF Face effective cutting edge count
16
ZEFP Peripheral effective cutting edge count
16
