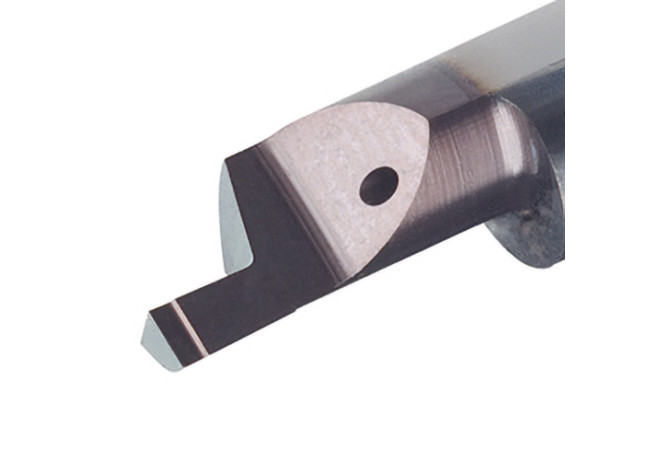

Главная Каталог продукции Toolunited 13 310-06 - Turning tool no 7 - grooving and cut-off design MINFR07-110200D060 TT9030

MINFR07-110200D060 TT9030

Артикул: 6861015

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

3 mm

COMPC Company code

IL - Ingersoll

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/27/2024

DIN

IL-Tmicro-7mmIK

FamilyProducts

MINF

GRDMFG Grade manufacturers designation

TT9030

HAND Cutting direction

R - Right

ID Technical product number

6861015

Interface codes

J6 /

ISYC Subclass

310-06 - Turning tool no 7 - grooving and cut-off design

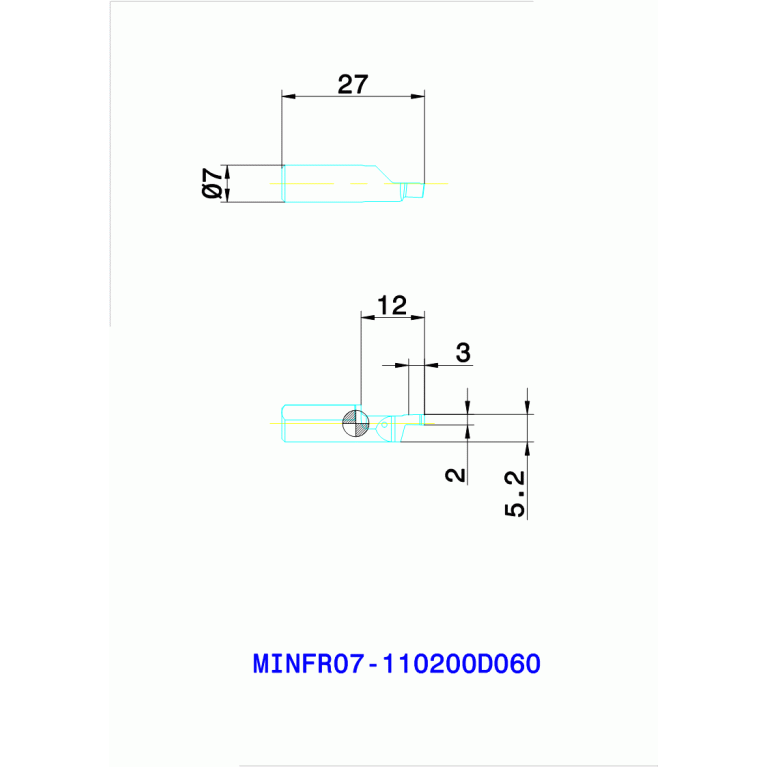

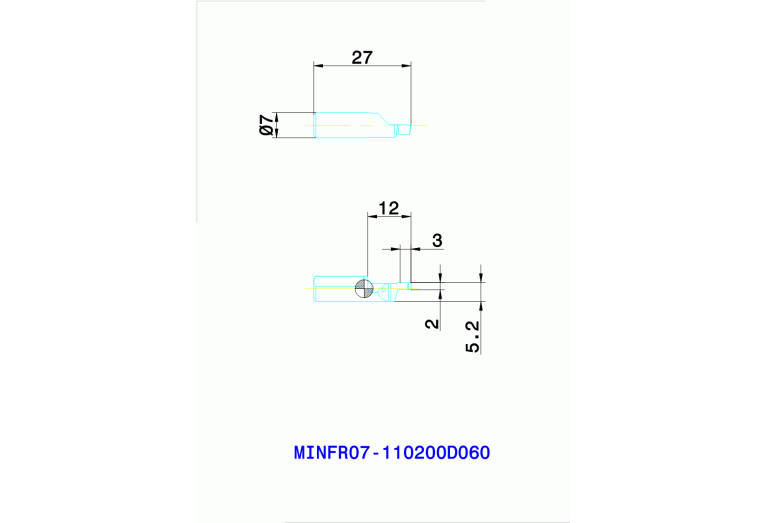

L Cutting edge length

2 mm

LF Functional length

27 mm

LH Head length

12 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 DCONMS Diameter

7 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-Tmicro-7mmIK

Materials

P,M,N,S

Name Identifying order number

MINFR07-110200D060 TT9030

OAL Overall length

27 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.01 kg
