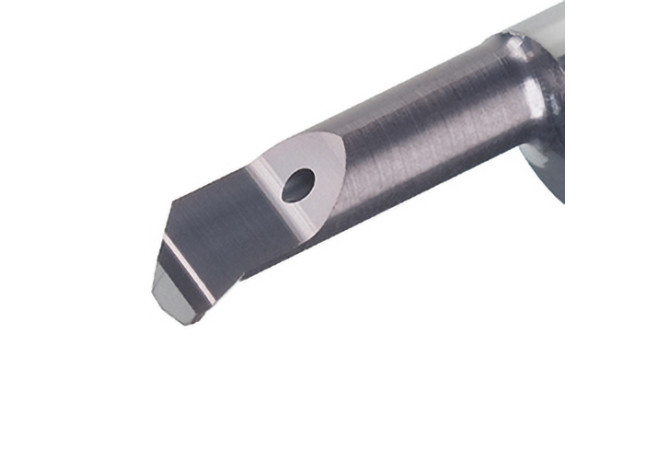

Главная Каталог продукции Toolunited 13 310-09 - Internal turning tool no 9 - offset side cutting design MINTL04-090010D040 TT9030

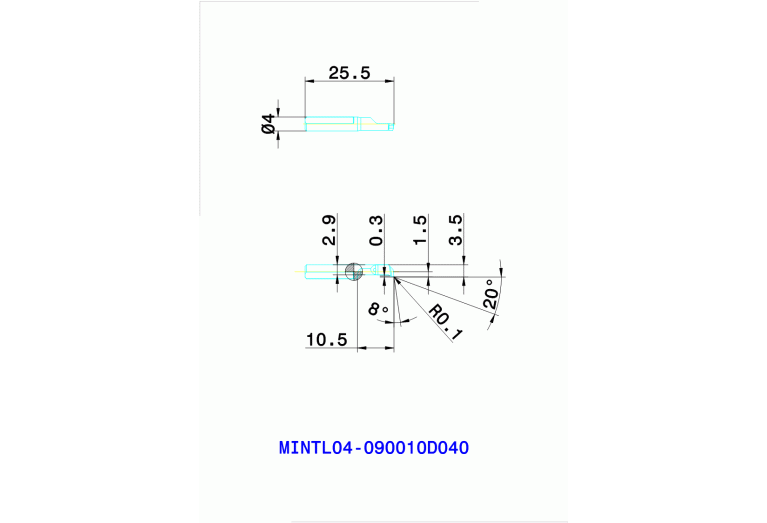

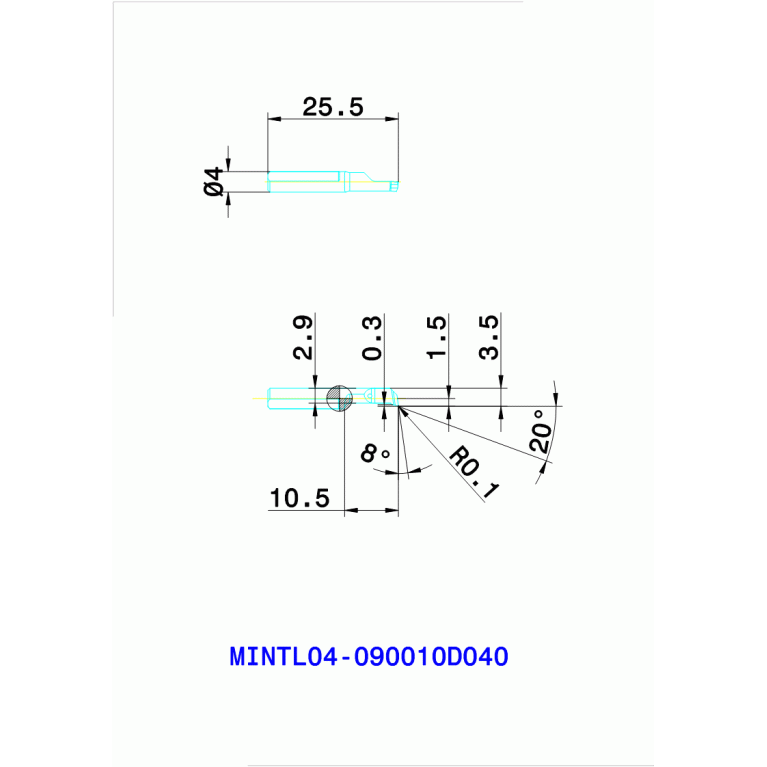

MINTL04-090010D040 TT9030

Артикул: 6861121

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

0.3 mm

COMPC Company code

IL - Ingersoll

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/27/2024

DIN

IL-Tmicro-4mmIK

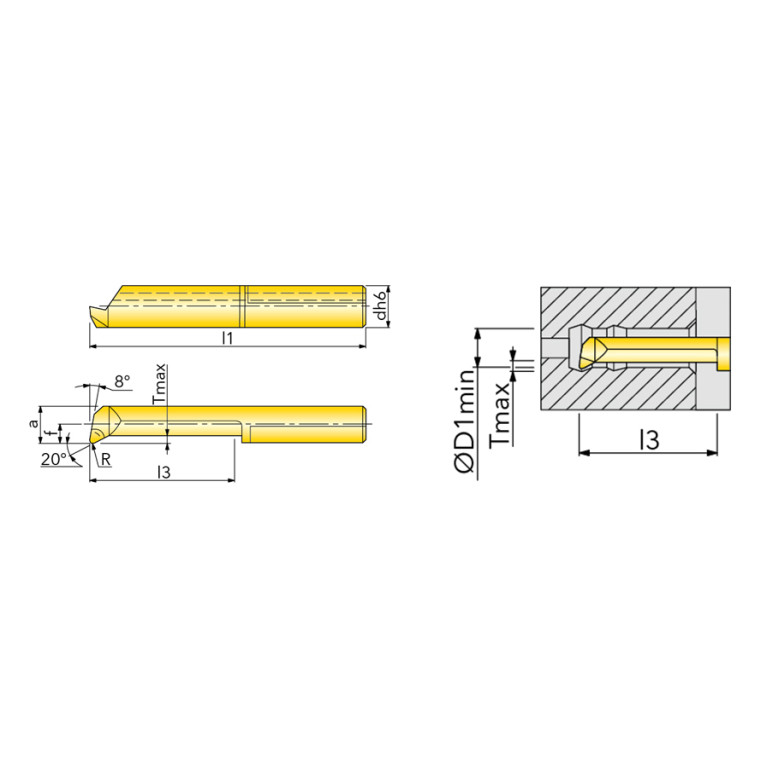

DMIN Minimum bore diameter

4 mm

FamilyProducts

MINT04

GRDMFG Grade manufacturers designation

TT9030

HAND Cutting direction

L - Left

ID Technical product number

6861121

Interface codes

J6 /

ISYC Subclass

310-09 - Internal turning tool no 9 - offset side cutting design

LF Functional length

25.5 mm

LH Head length

10.5 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-Tmicro-4mmIK

Materials

P,M,N,S

Name Identifying order number

MINTL04-090010D040 TT9030

OAL Overall length

25.5 mm

TCDCONMS ISO-tolerance class shank diameter

WF Functional width

1.5 mm

Working process

No working processes available

WT Weight of item

0.003 kg
