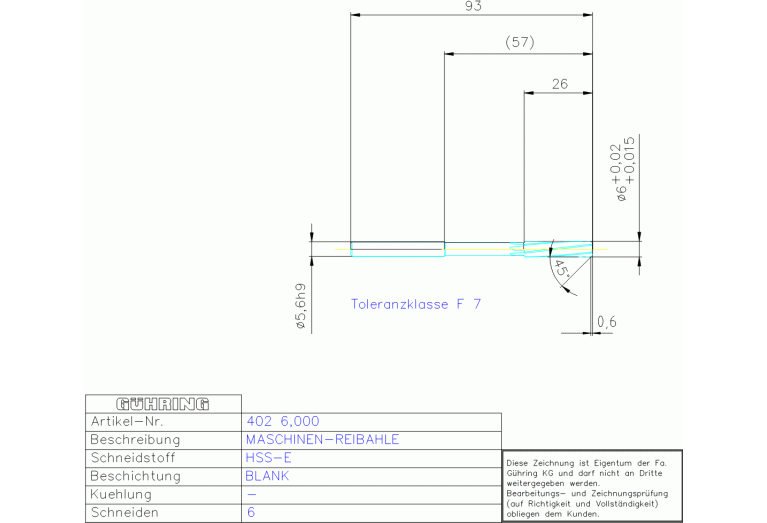

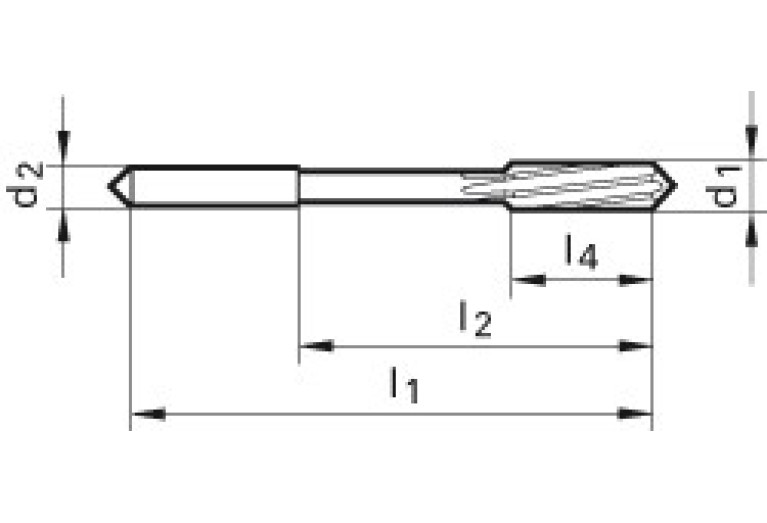

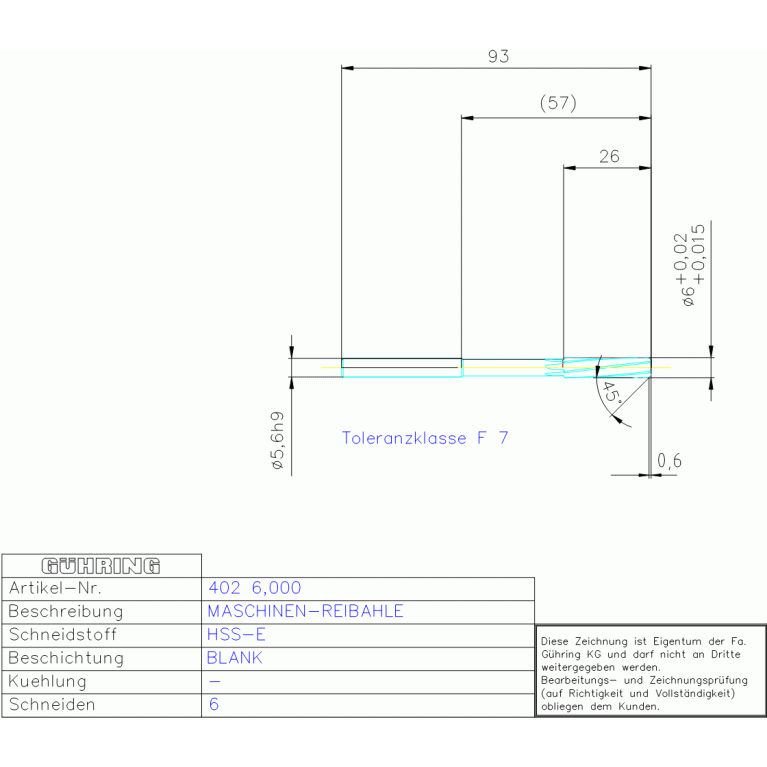

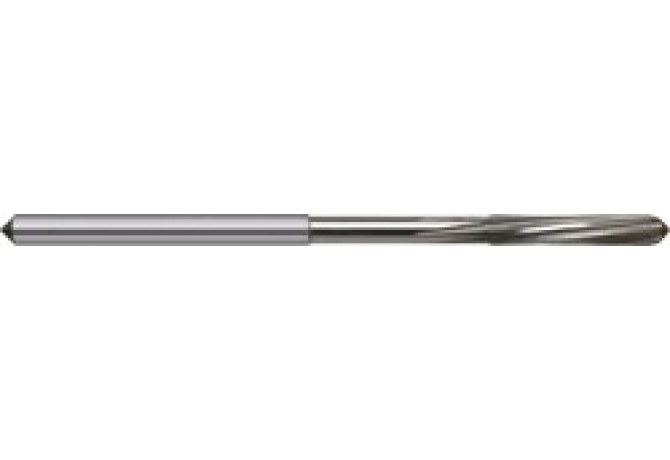

Главная Каталог продукции Toolunited 13 311-01 - Solid cylindrical reamer 402 6.000

402 6.000

Артикул: 402 6.000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

26 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

1 - Unequal (e.g. 58-60-62 degree)

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6 mm

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00560105

FamilyProducts

ZL-REI-M 06LGBR-N 6,000 HSS-E

FHA Flute helix angle

7 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

HSS-E

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0056

LOC-03 DCONMS Diameter

5.6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00560105

LPR Protruding length

57 mm

LS Shank length

36 mm

LU Usable length

57 mm

Name Identifying order number

402 6.000

NOF Flute count

OAL Overall length

93 mm

PLANG Plug angle

PLGL Plug length

0.6 mm

RESYC Reaming tool style code

2 - For though-holes

STDLET Standard letter to the standard number

STDNO Standard

DIN 212-2

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.016 kg
