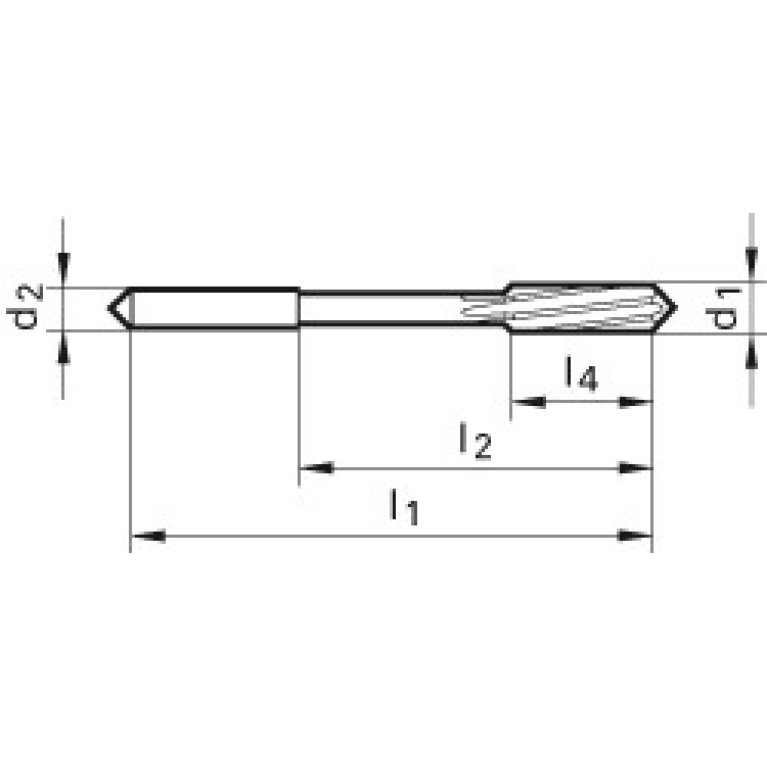

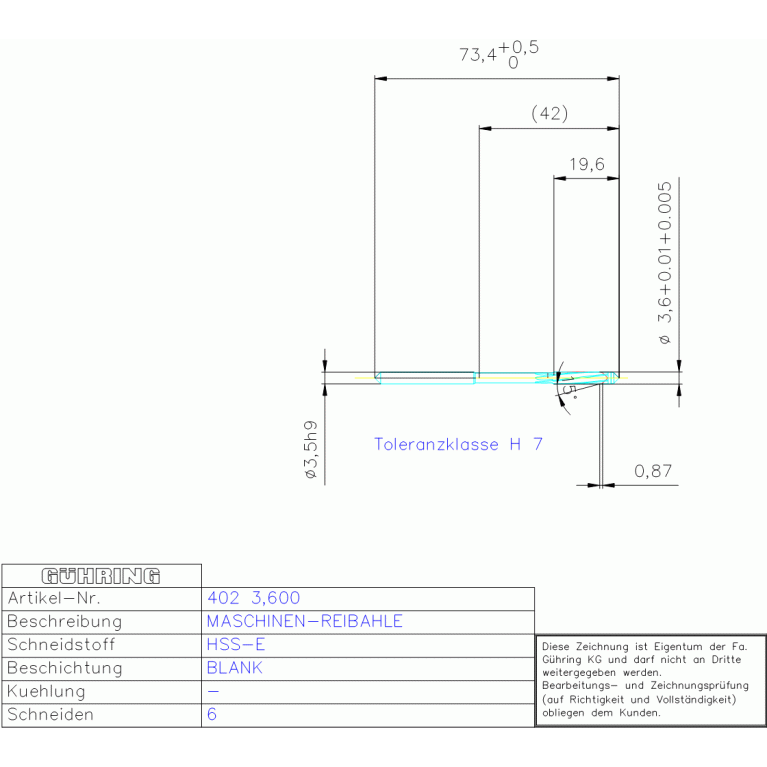

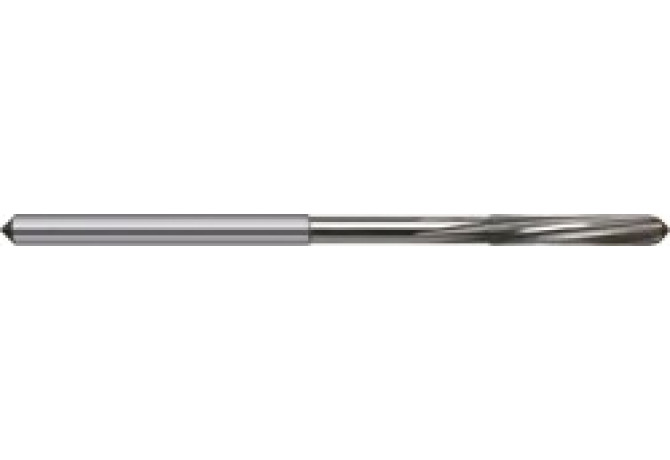

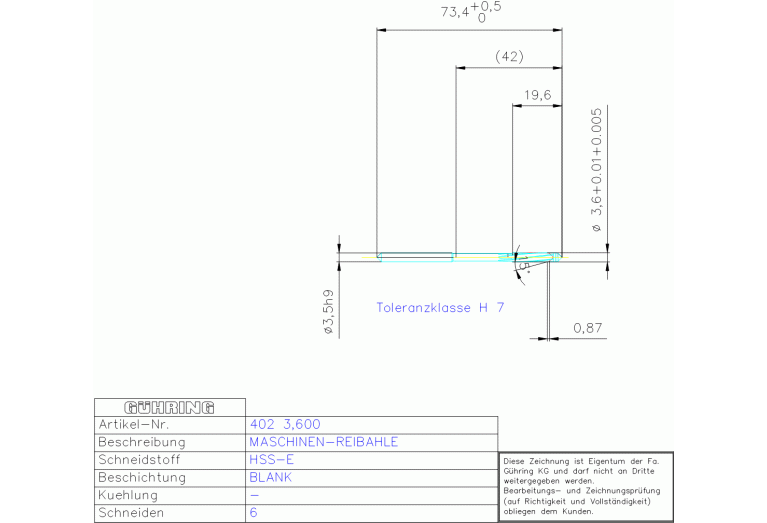

Главная Каталог продукции Toolunited 13 311-01 - Solid cylindrical reamer 402 3.600

402 3.600

Артикул: 9004020036000

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

18 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CPDF Cutting pitch differential

1 - Unequal (e.g. 58-60-62 degree)

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

3.6 mm

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00350105

FamilyProducts

HSS-E MA,-REIBAHLE DIN 212-1 - B H7

FHA Flute helix angle

7 Degree

FHH Flute helix hand

L - Hand of helix left

GRD2ND Standard designation of the grade 2nd application

HSS-E

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9004020036000

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

69.1 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0035

LOC-03 DCONMS Diameter

3.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00350105

LPR Protruding length

42 mm

LS Shank length

28 mm

LU Usable length

42 mm

Name Identifying order number

402 3.600

NOF Flute count

OAL Overall length

70 mm

PLANG Plug angle

PLGL Plug length

0.9 mm

RESYC Reaming tool style code

2 - For though-holes

STDLET Standard letter to the standard number

STDNO Standard

DIN212-1

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.005 kg
