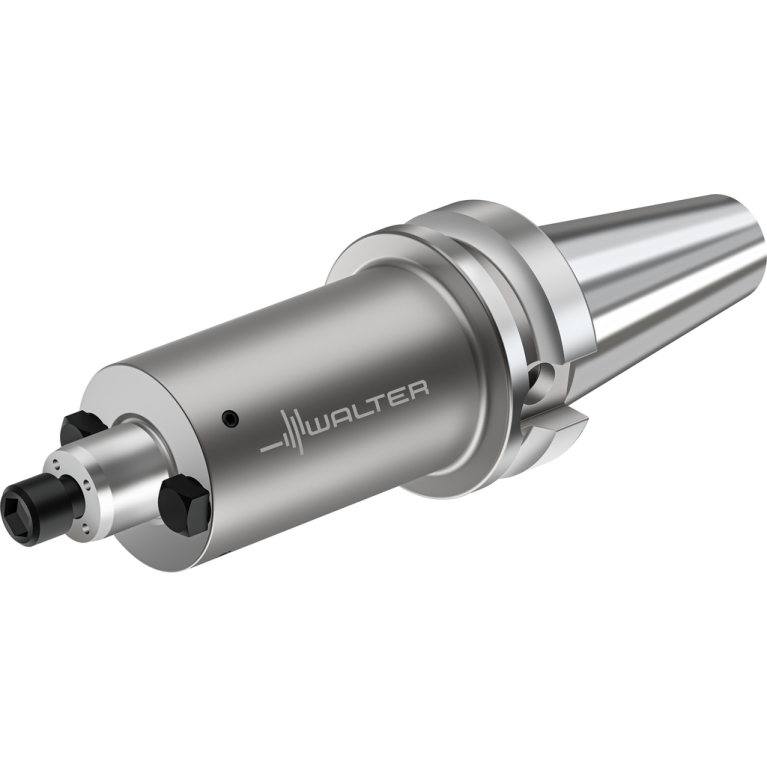

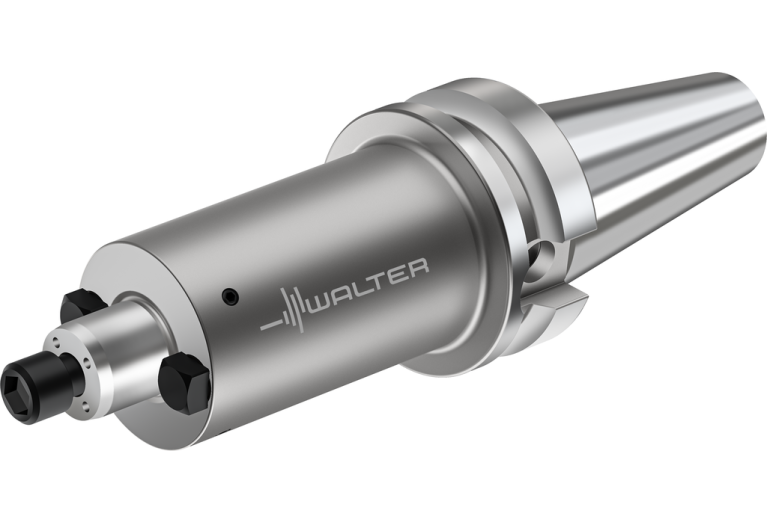

Главная Каталог продукции Toolunited 13 401-01 - Converter, rotationally symmetric AB001-J40-B40-160

AB001-J40-B40-160

Артикул: 8651699

В наличии

В корзину

Описание

Характеристики

BD Body diameter

87 mm

CCFWS Form

CCSWS Style

CCTWS Type

SPK

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

CZCWS Size code

0400

DCONWS Diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2024

DF Flange diameter

63 mm

DIN

SKG04005795

FamilyProducts

MAS-BT JIS B 6339 shell mill arbor AB001-J

ID Technical product number

8651699

Interface codes

J6 / J61

ISO

SKG57C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

133 mm

LF Functional length

160 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-01 CCTWS Type

SPK Spindle nose mounting

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0400

LOC-01 DCONWS Diameter

40 mm

LOC-01 ISO

SPK01G4000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SPK04000113

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

SKG57C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005795

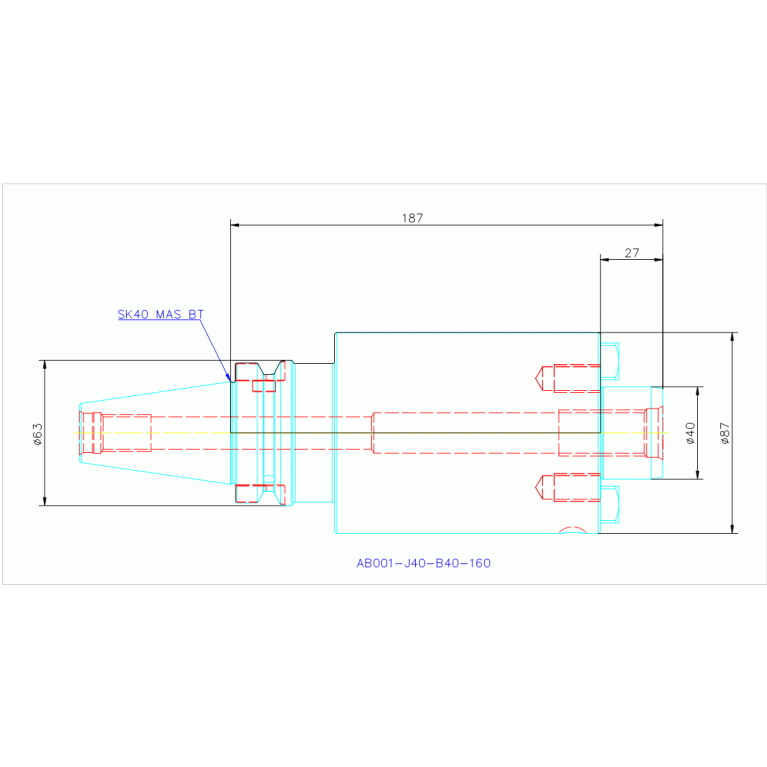

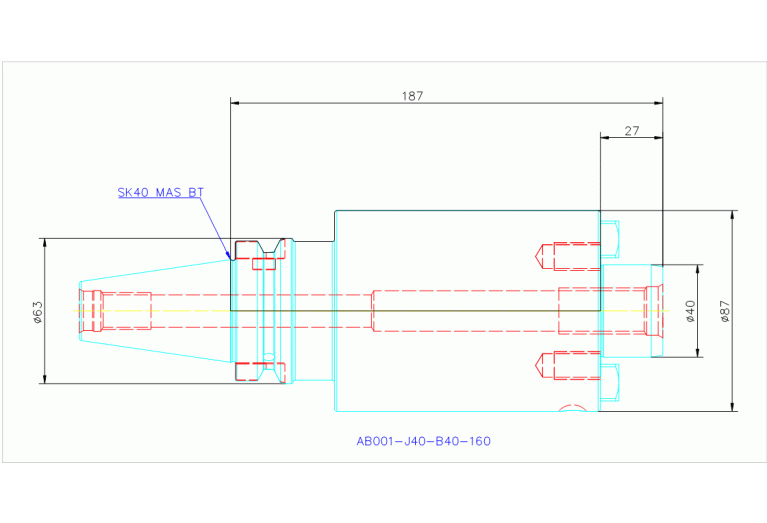

LPR Protruding length

187 mm

LS Shank length

27 mm

Name Identifying order number

AB001-J40-B40-160

OAL Overall length

255.4 mm

Rotation Rotation indicator

1 - rotating tool

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

MAS403-BT

WT Weight of item

5.055 kg
