Главная Каталог продукции Toolunited 13 401-01 - Converter, rotationally symmetric AB001-J40-B22-035

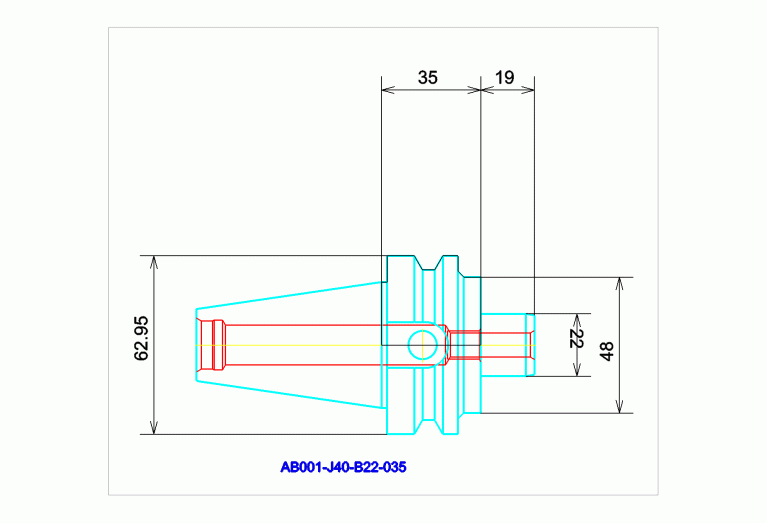

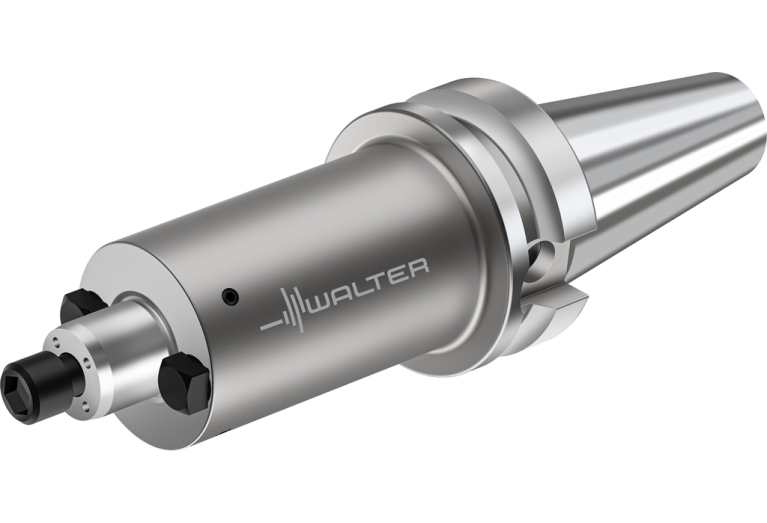

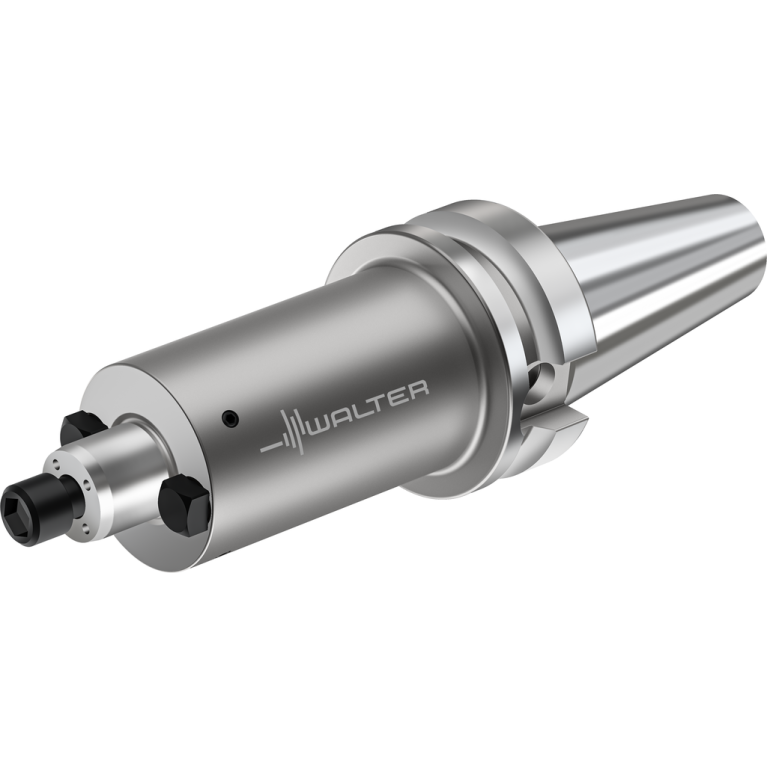

AB001-J40-B22-035

AB001-J40-B22-035 AB001-J40-B22-035 AB001-J40-B22-035 AB001-J40-B22-035

AB001-J40-B22-035

Walter
Артикул: 8651678
В наличии
В корзину
Описание
Характеристики
BD Body diameter
48 mm
CCFWS Form
12
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
1
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
CZCWS Size code
0220
DCONWS Diameter
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2024
DF Flange diameter
63 mm
DIN
SKG04005795
FamilyProducts
MAS-BT JIS B 6339 shell mill arbor AB001-J
ID Technical product number
8651678
Interface codes
J6 / J61
ISO
SKG57C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
6 mm
LB Length 2
35 mm
LF Functional length
35 mm
LOC-01 CCFWS Form
12
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0220
LOC-01 DCONWS Diameter
22 mm
LOC-01 ISO
FDA12G2200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02201210
LOC-02 ISO
FDA22G2200****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA02202210
LOC-03 CCFMS Form
57
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
SKG57C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005795
LPR Protruding length
54 mm
LS Shank length
19 mm
LSCX Clamping length maximum
19 mm
Name Identifying order number
AB001-J40-B22-035
OAL Overall length
122.4 mm
Rotation Rotation indicator
1 - rotating tool
RPMX Rotational speed maximum
12000 1/min
STDLET Standard letter to the standard number
AD
STDNO Standard
MAS403-BT
WT Weight of item
1.213 kg
